CAN Communication Circuit Check

  1. CHECK CONNECTOR
    1. Turn ignition switch OFF.
    2. Disconnect the negative battery terminal.
    3. Check following terminals and connector for damage, bent or loose connection (control module-side, control unit-side, meter-side and harness-side).
      • ECM.
      • TCM.
      • Combination meter.
      • BCM.
      • ABS actuator and electric unit (control unit).
      • IPDM E/R.
      • Between ECM and IPDM E/R.

        OK or NG

        1. OK : GO TO 2.
        2. NG : Repair terminal or connector.
    4. CHECK HARNESS FOR SHORT CIRCUIT
      1. Disconnect ECM connector, TCM connector and harness connector F59.
      2. Check continuity between ECM harness connector F54 terminals 109 (L) and 113 (Y).

        109 (L) - 113 (Y) : Continuity should not exist.

        OK or NG

        1. OK : GO TO 3.
        2. NG : GO TO NEXT STEP.
          • Repair harness between ECM and harness connector F59.
          • Repair harness between TCM and harness connector F59.

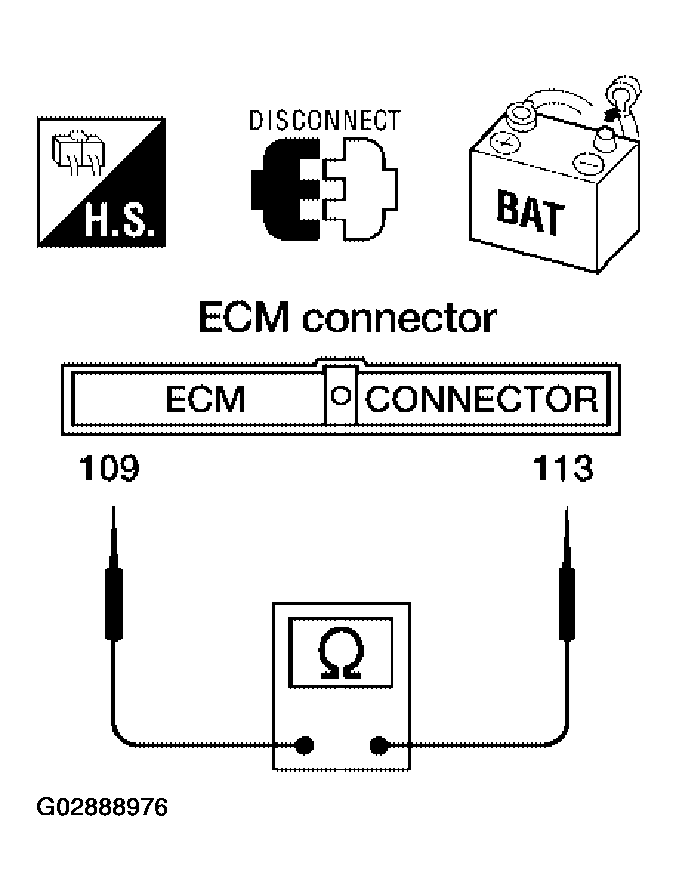

            Fig 1: Checking Continuity Between ECM Harness Connector F54 Terminals 109 (L) And 113 (Y)
            G02888976Courtesy of NISSAN MOTOR CO., U.S.A.
    5. CHECK HARNESS FOR SHORT CIRCUIT

      Check continuity between ECM harness connector F54 terminals 109 (L), 113 (Y) and ground.

      109 (L) - ground : Continuity should not exist.

      113 (Y) - ground : Continuity should not exist.

      OK or NG

      1. OK : GO TO 4.
      2. NG : GO TO NEXT STEP.
        • Repair harness between ECM and harness connector F59.
        • Repair harness between TCM and harness connector F59.

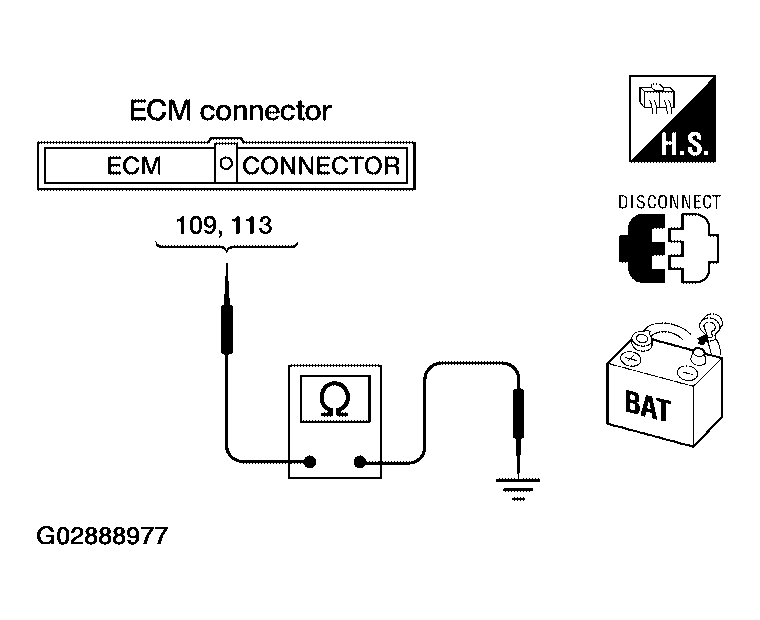

          Fig 2: Checking Continuity Between ECM Harness Connector F54 Terminals 109 (L), 113 (Y) And Ground
          G02888977Courtesy of NISSAN MOTOR CO., U.S.A.
  2. CHECK HARNESS FOR SHORT CIRCUIT
    1. Disconnect combination meter connector, BCM connector and harness connector M7.
    2. Check continuity between data link connector M22 terminals 6 (L) and 14 (Y).

      6 (L) - 14 (Y) : Continuity should not exist.

      OK or NG

      1. OK : GO TO 5.
      2. NG : GO TO NEXT STEP.
        • Repair harness between harness connector M71 and harness connector M7.
        • Repair harness between harness connector M71 and combination meter.
        • Repair harness between harness connector M71 and data link connector.
        • Repair harness between harness connector M71 and BCM.

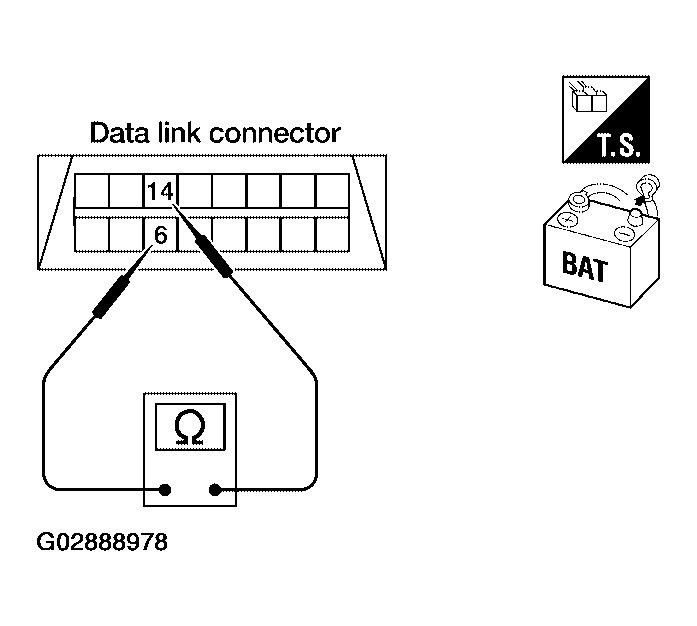

          Fig 3: Checking Continuity Between Data Link Connector M22 Terminals 6 (L) And 14 (Y)
          G02888978Courtesy of NISSAN MOTOR CO., U.S.A.
  3. CHECK HARNESS FOR SHORT CIRCUIT

    Check continuity between data link connector M22 terminals 6 (L), 14 (Y) and ground.

    6 (L) - ground : Continuity should not exist.

    14 (Y) - ground : Continuity should not exist.

    OK or NG

    1. OK : GO TO 6.
    2. NG : GO TO NEXT STEP.
      • Repair harness between harness connector M71 and harness connector M7.
      • Repair harness between harness connector M71 and combination meter.
      • Repair harness between harness connector M71 and data link connector.
      • Repair harness between harness connector M71 and BCM.

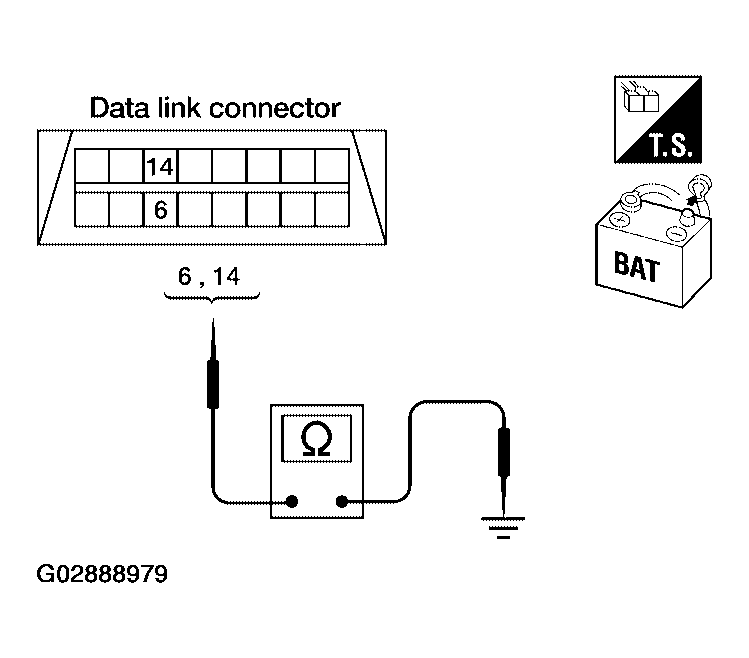

        Fig 4: Checking Continuity Between Data Link Connector M22 Terminals 6 (L), 14 (Y) And Ground
        G02888979Courtesy of NISSAN MOTOR CO., U.S.A.
  4. CHECK HARNESS FOR SHORT CIRCUIT
    1. Disconnect harness connector E27.
    2. Check continuity between harness connector E28 terminals 10 (L) and 9 (Y).

      10 (L) - 9 (Y) : Continuity should not exist.

      OK or NG

      1. OK : GO TO 7.
      2. NG : Repair harness between harness connector E28 and harness connector E27.

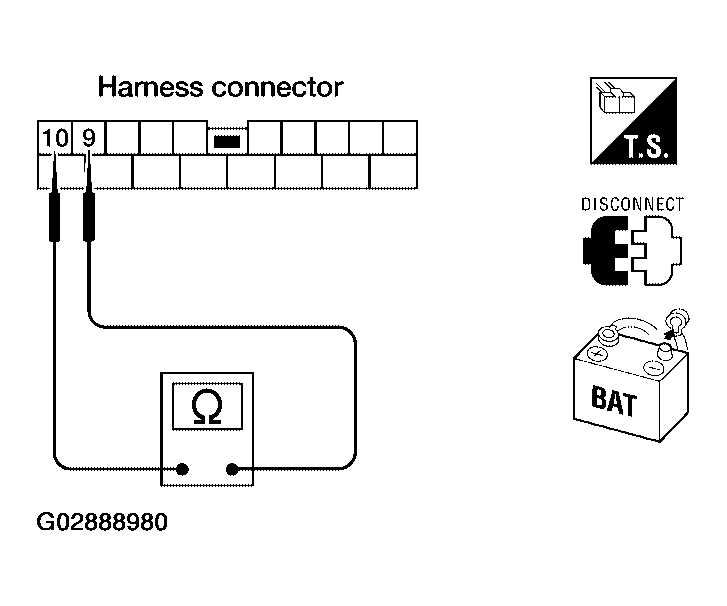

        Fig 5: Checking Continuity Between Harness Connector E28 Terminals 10 (L) And 9 (Y)
        G02888980Courtesy of NISSAN MOTOR CO., U.S.A.
  5. CHECK HARNESS FOR SHORT CIRCUIT

    Check continuity between harness connector E28 terminals 10 (L), 9 (Y) and ground.

    10 (L) - ground : Continuity should not exist.

    9 (Y) - ground : Continuity should not exist.

    OK or NG

    1. OK : GO TO 8.
    2. NG : Repair harness between harness connector E28 and harness connector E27.

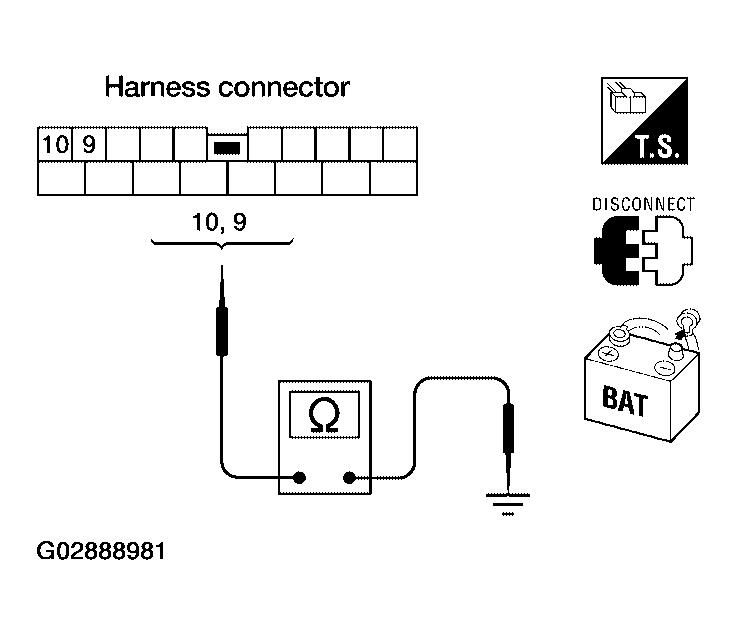

      Fig 6: Checking Continuity Between Harness Connector E28 Terminals 10 (L), 9 (Y) And Ground
      G02888981Courtesy of NISSAN MOTOR CO., U.S.A.
  6. CHECK HARNESS FOR SHORT CIRCUIT
    1. Disconnect ABS actuator and electric unit (control unit) connector and IPDM E/R connector.
    2. Check continuity between IPDM E/R harness connector E121 terminals 48 (L) and 49 (Y).

      48 (L) - 49 (Y) : Continuity should not exist.

      OK or NG

      1. OK : GO TO 9.
      2. NG : GO TO NEXT STEP.
        • Repair harness between harness connector E130 and ABS actuator and electric unit (control unit).
        • Repair harness between harness connector E130 and IPDM E/R.

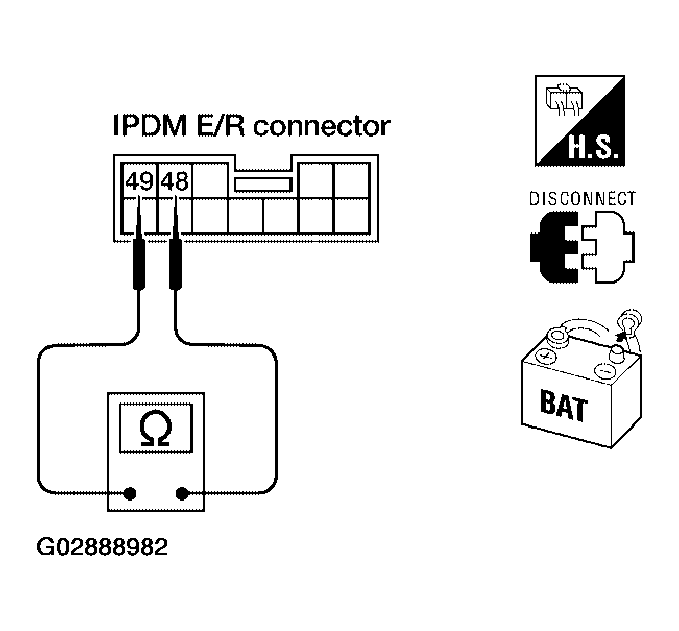

          Fig 7: Checking Continuity Between IPDM E/R Harness Connector E121 Terminals 48 (L) And 49 (Y)
          G02888982Courtesy of NISSAN MOTOR CO., U.S.A.
  7. CHECK HARNESS FOR SHORT CIRCUIT

    Check continuity between IPDM E/R harness connector E121 terminals 48 (L), 49 (Y) and ground.

    48 (L) - ground : Continuity should not exist.

    49 (Y) - ground : Continuity should not exist.

    OK or NG

    1. OK : GO TO 10.
    2. NG : GO TO NEXT STEP.
      • Repair harness between harness connector E130 and ABS actuator and electric unit (control unit).
      • Repair harness between harness connector E130 and IPDM E/R.

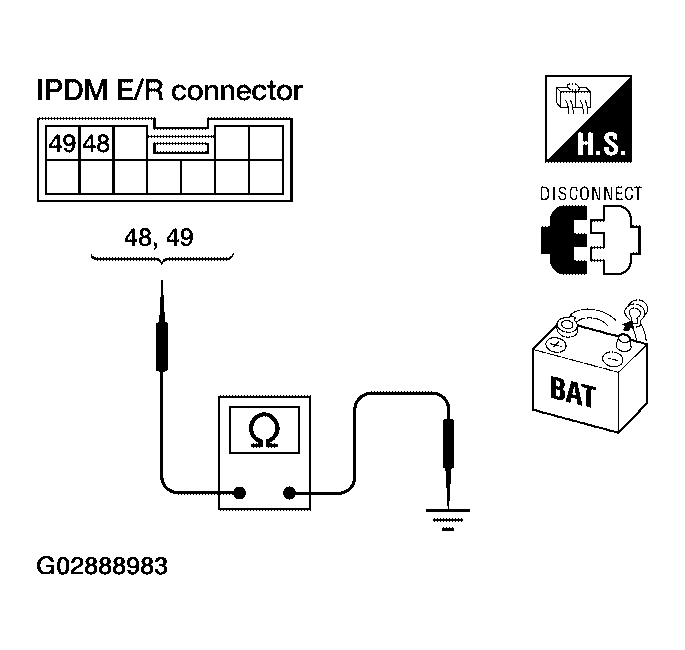

        Fig 8: Checking Continuity Between IPDM E/R Harness Connector E121 Terminals 48 (L), 49 (Y) And Ground
        G02888983Courtesy of NISSAN MOTOR CO., U.S.A.
  8. ECM/IPDM E/R INTERNAL CIRCUIT INSPECTION

    Perform components inspection. Refer to "ECM/IPDM E/R INTERNAL CIRCUIT INSPECTION "

    OK or NG

    1. OK : Connect all the connectors and diagnose again. Refer to "WORK FLOW ".
    2. NG : Replace ECM and/or IPDM E/R.
