Removal & Installation

WARNING: This page does not describe the selected car, but rather 34 other vehicles, including the 2004 BMW M3, 2004 BMW 330xi, 2004 BMW 330i, 2004 BMW 330Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Read out fault memory of control module and, if necessary, print diagnostic record.
Remove DSC hydraulic unit. See DSC HYDRAULIC UNIT (MK60) .
Seal off the line connections with the plugs (1) provided in the repair kit. This prevents brake fluid from being discharged from the hydraulic unit, which makes it easier to bleed the brake system later. Secure provided retaining lug (2) from repair kit for pump motor with aid of plugs (3). See Fig 1.
Loosen screws (1). Carefully detach control module (2). See Fig 2.
For installation, reverse removal procedure. Tighten screws to specification. See TORQUE SPECIFICATIONS .

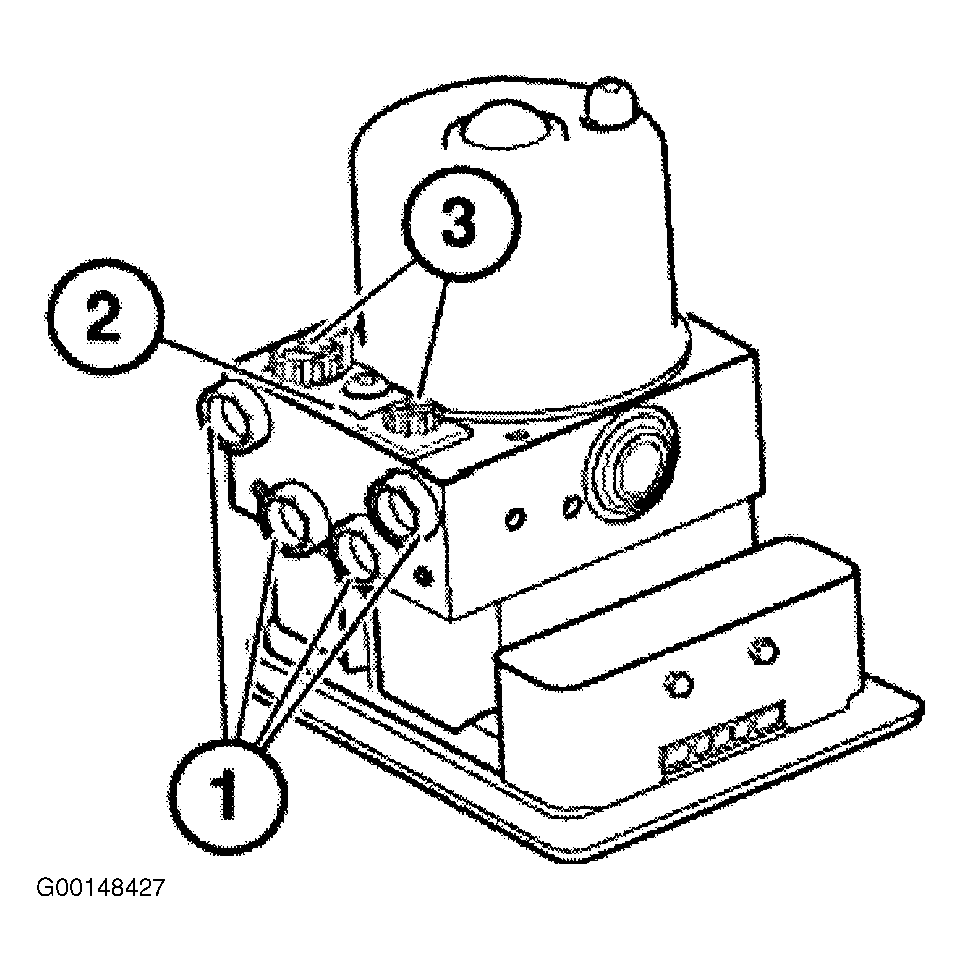

Fig 1: Locating Plug Placement

Courtesy of BMW OF NORTH AMERICA, INC.

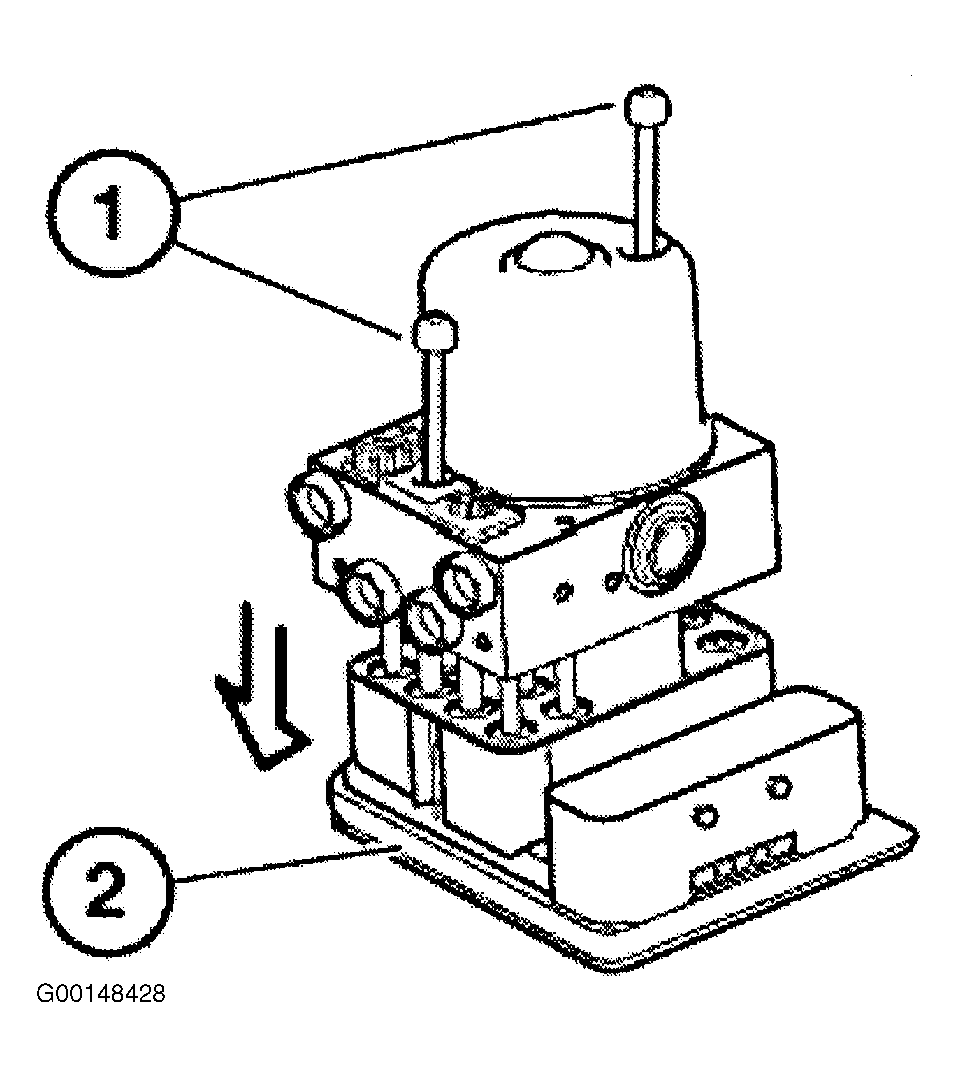

Fig 2: Removing DSC Control Module (MK60)

Courtesy of BMW OF NORTH AMERICA, INC.
