32 31 090 Removing And Installing Complete Steering Column

After installation:

• Carry out steering angle sensor adjustment, refer to 61 31 996 CARRY OUT STEERING ANGLE SENSOR ADJUSTMENT
• Perform function check:
  1. I) Check for ease of movement in overall adjustment range of steering column to adjoining components/wires
  2. II) Turn steering wheel in both directions to full lock. The airbag warning lamp must not light up in the process.
• Check directional stability of vehicle

Necessary preliminary tasks:

• Disconnect battery negative lead, refer to 12 00... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY
• Remove steering wheel, refer to 32 33 000 REMOVING AND INSTALLING/REPLACING STEERING WHEEL
• Remove top section of steering column trim, refer to 32 31 003 REPLACING UPPER SECTION OF STEERING COLUMN TRIM
• Remove lower section of steering column trim, refer to 32 31 020 REMOVING AND INSTALLING/REPLACING LOWER SECTION OF STEERING COLUMN COVER

Unfasten screws.

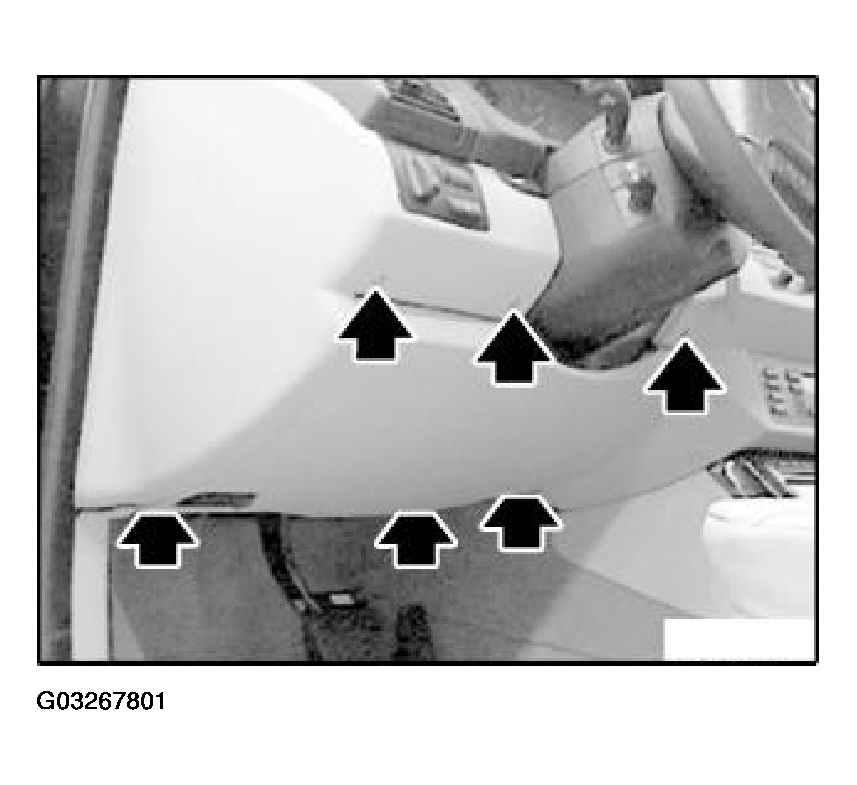

Fig 1: Removing Instrument Panel Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug from gong and On-board Diagnosis.

Remove instrument panel trim.

Take off collar (1).

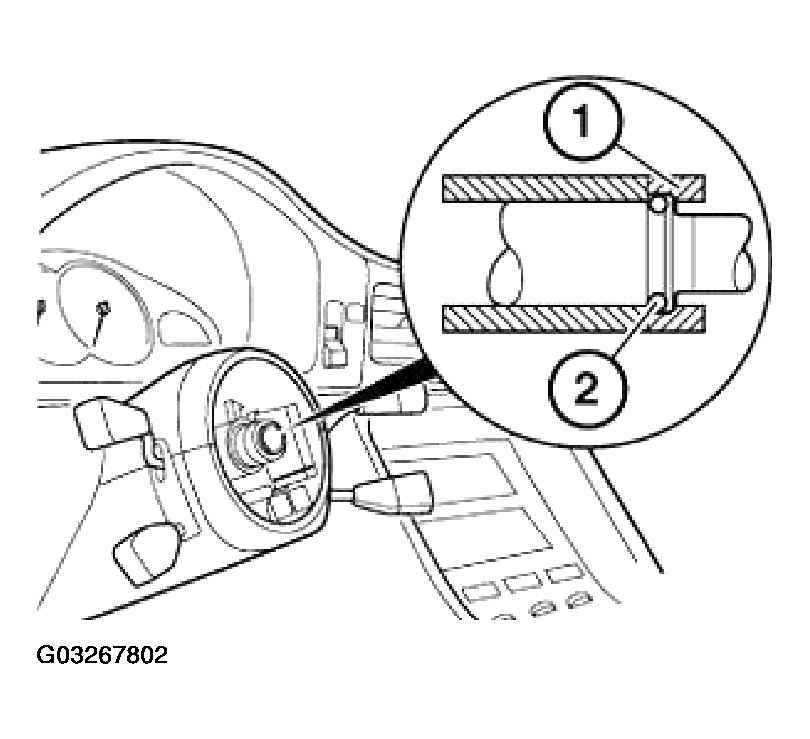

Fig 2: Removing Collar

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check position of collar (1) relative to snap ring (2).

If necessary, remove cable for interlock from steering lock.

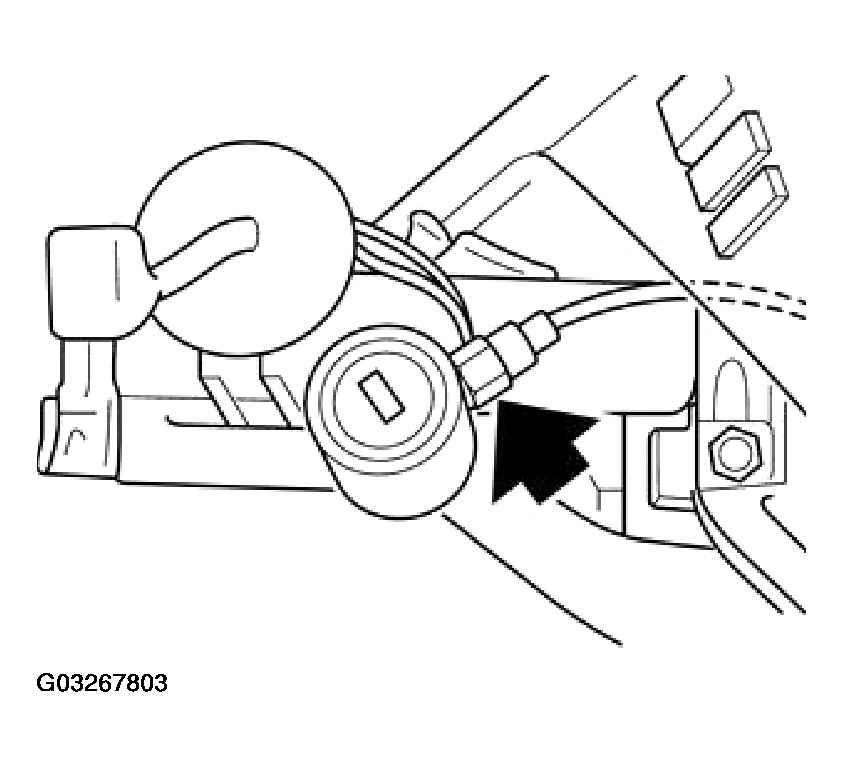

Fig 3: Removing Cable For Interlock From Steering Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws.

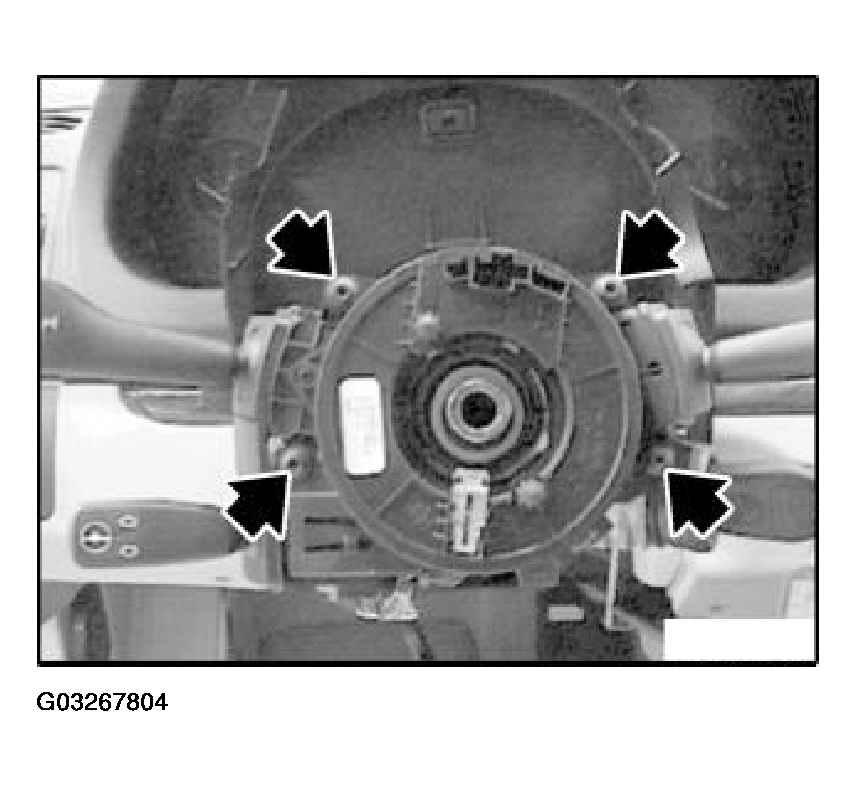

Fig 4: Removing Stalk Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

Detach plug and remove stalk fixture for steering column.

Remove clamping bolt.

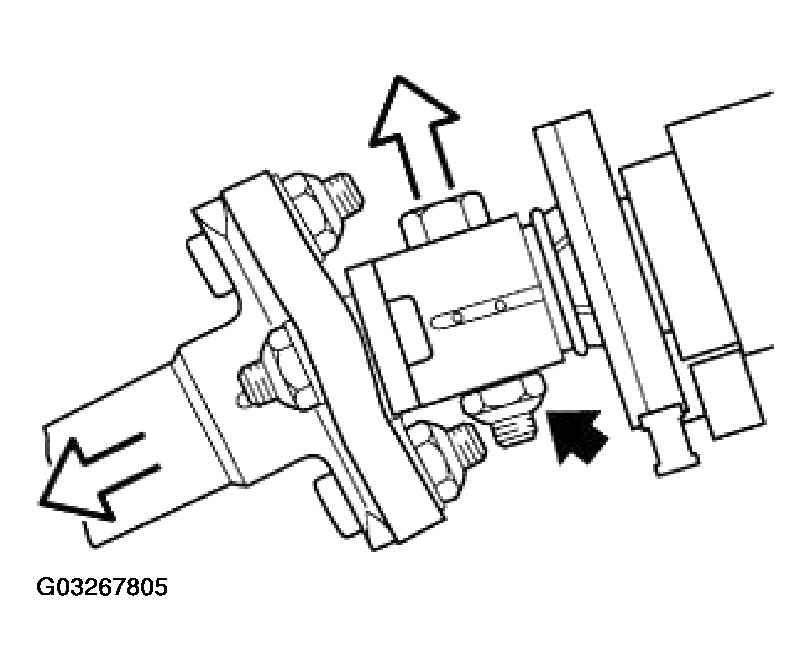

Fig 5: Removing Clamping Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Press down on steering spindle.

Installation:

Clamping screw must be located in retaining groove of steering spindle.

Replace self-locking nut.

Tightening torque, 32 31 1AZ. Refer to STEERING AND WHEEL ALIGNMENT - TIGHTENING TORQUES .

Loosen shear-off screw with chisel or mill off screw head.

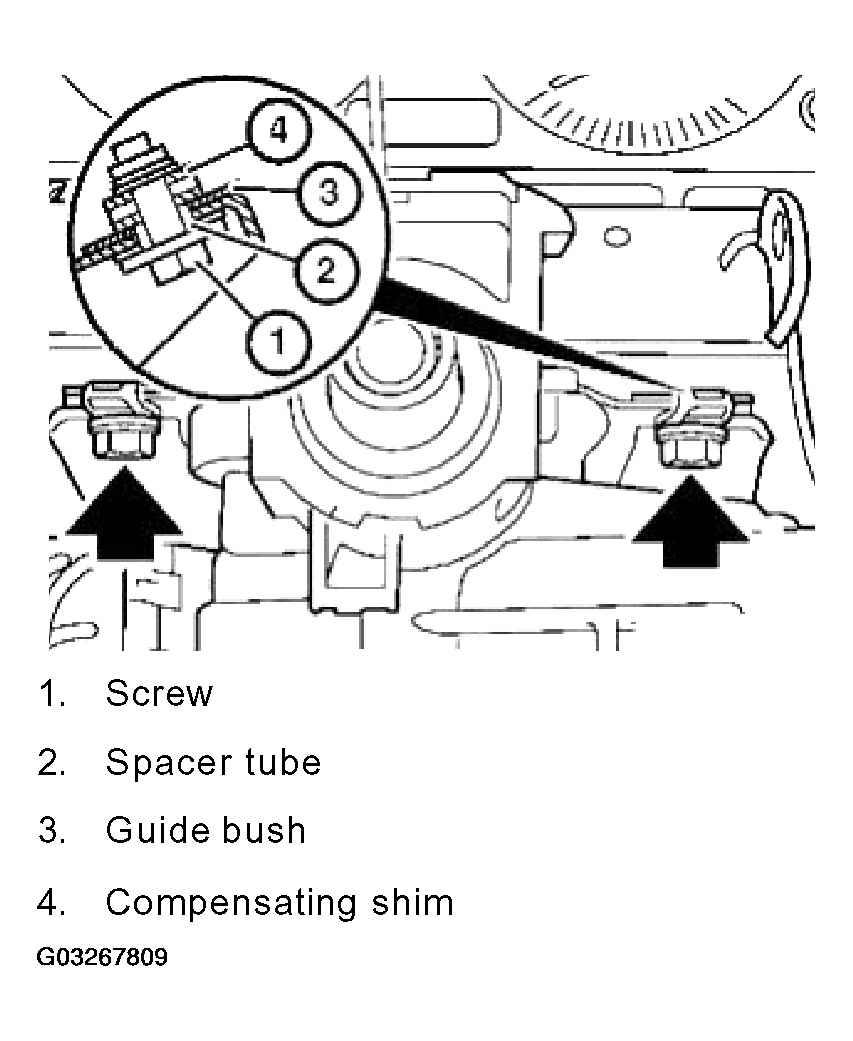

Fig 6: Removing Shear -Off Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fit spacer tube.

Tighten shear-off screws until heads shear off.

Unfasten all lines leading to steering column from their respective brackets.

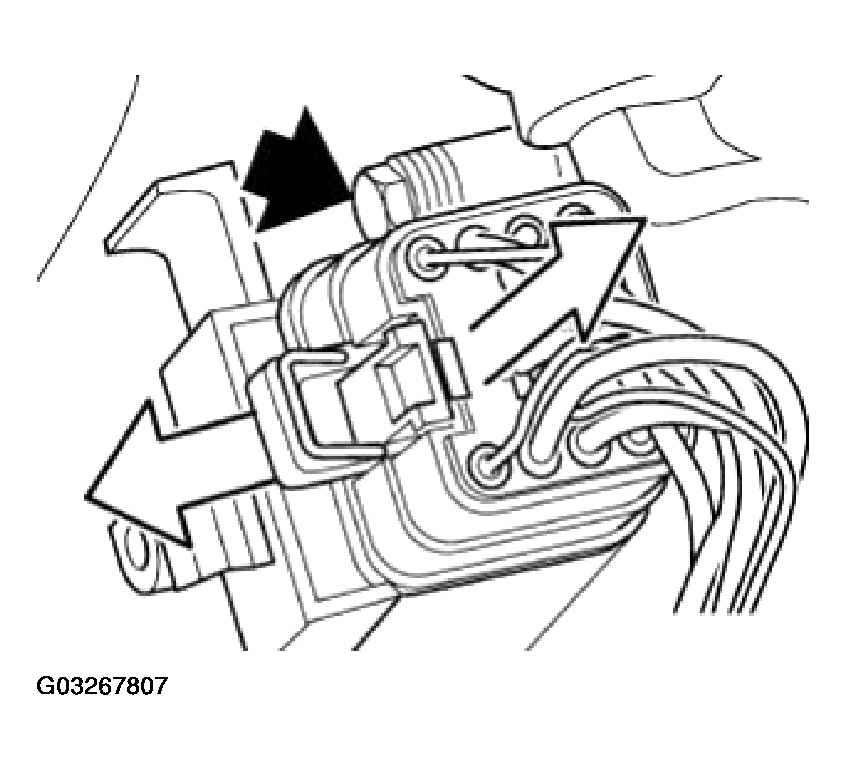

Fig 7: Removing Plug On Ignition Starter Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw.

Unlock plug on ignition starter switch and disconnect.

Mechanical adjustment:

Release screws (3).

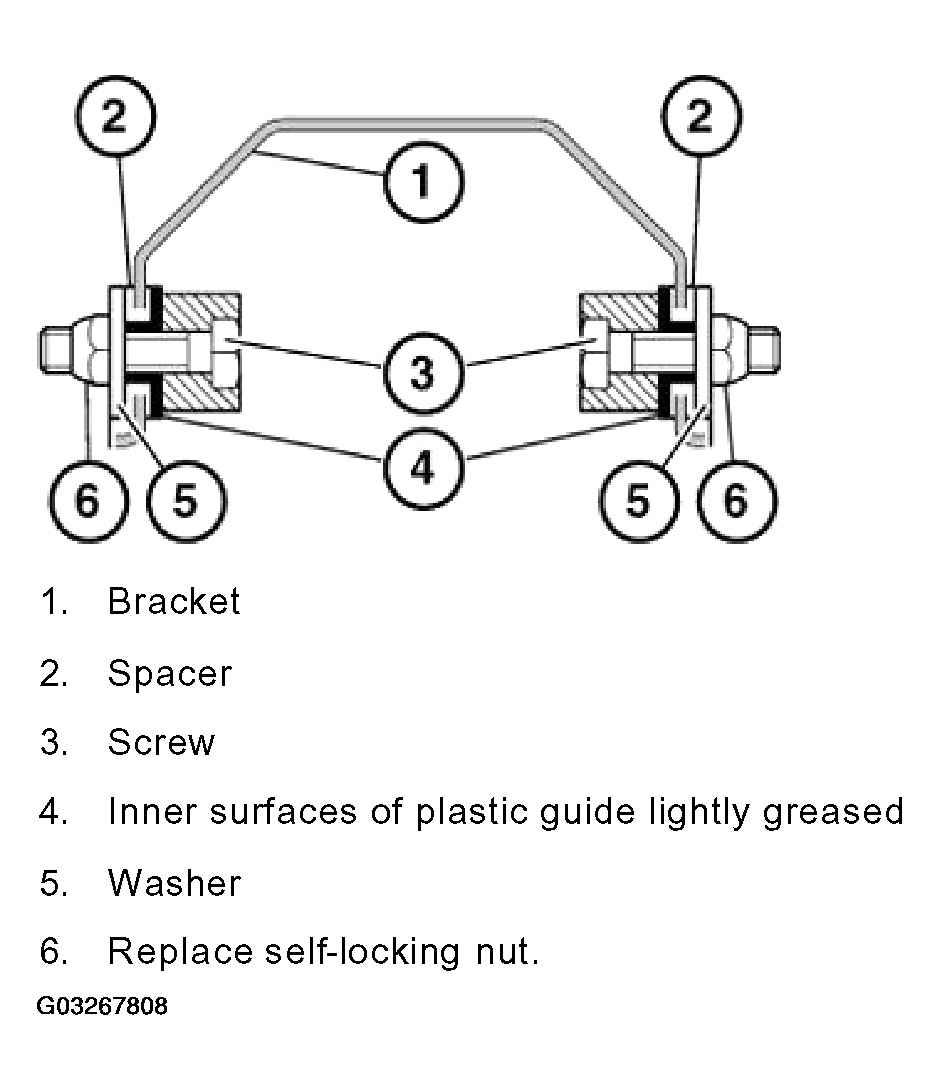

Fig 8: Identifying Mechanical Adjustment Components

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque = 8 Nm

Unfasten screws on support tube.

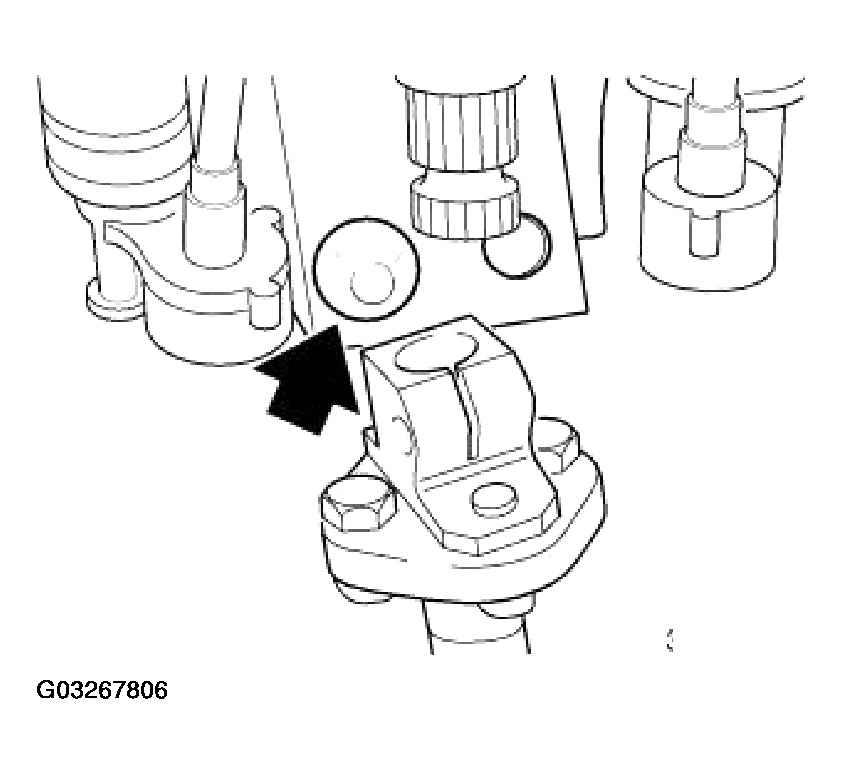

Fig 9: Removing Steering Column

Courtesy of BMW OF NORTH AMERICA, INC.

Remove steering column.
