32 31 020 Removing And Installing/Replacing Lower Section Of Steering Column Cover

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Unfasten screws.

Pull off lower section of steering column cover towards bottom.

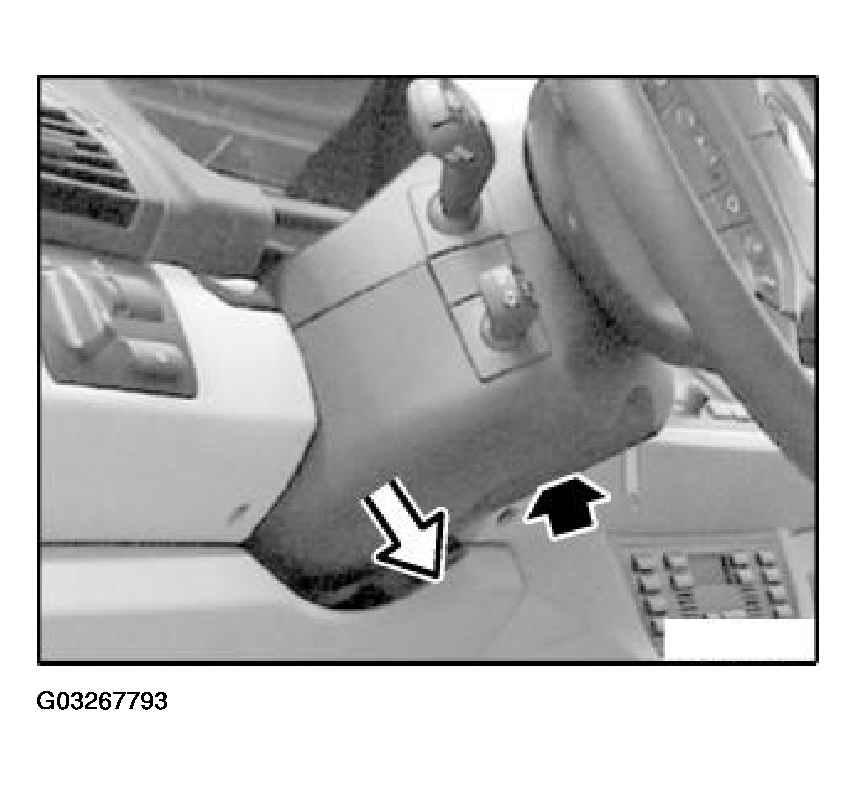

Fig 1: Removing Lower Section Of Steering Column Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clip leather boot into trim.

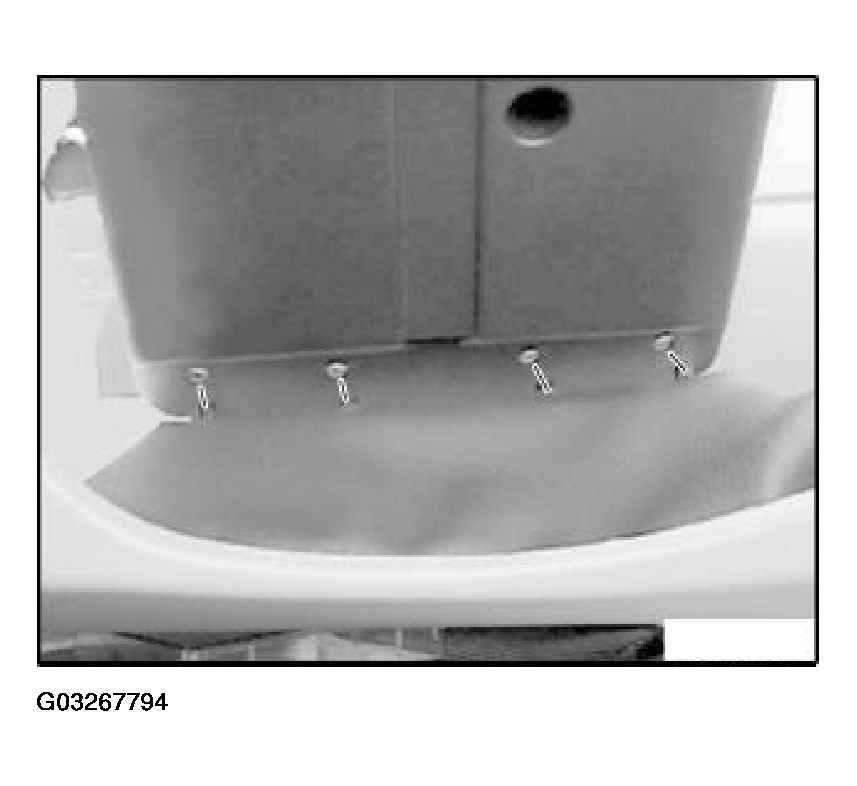

Fig 2: Installing Leather Boot Into Trim

Courtesy of BMW OF NORTH AMERICA, INC.
