32 31 003 Replacing Upper Section Of Steering Column Trim

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Move steering column in "bottom" and "extended" position.

Release screw.

Fig 1: Removing Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off upper section of steering column trim upwards.

Installation:

Fit new expanding nut.

Unclip and remove upper section of steering column trim.

Fig 2: Removing Upper Section Of Steering Column Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

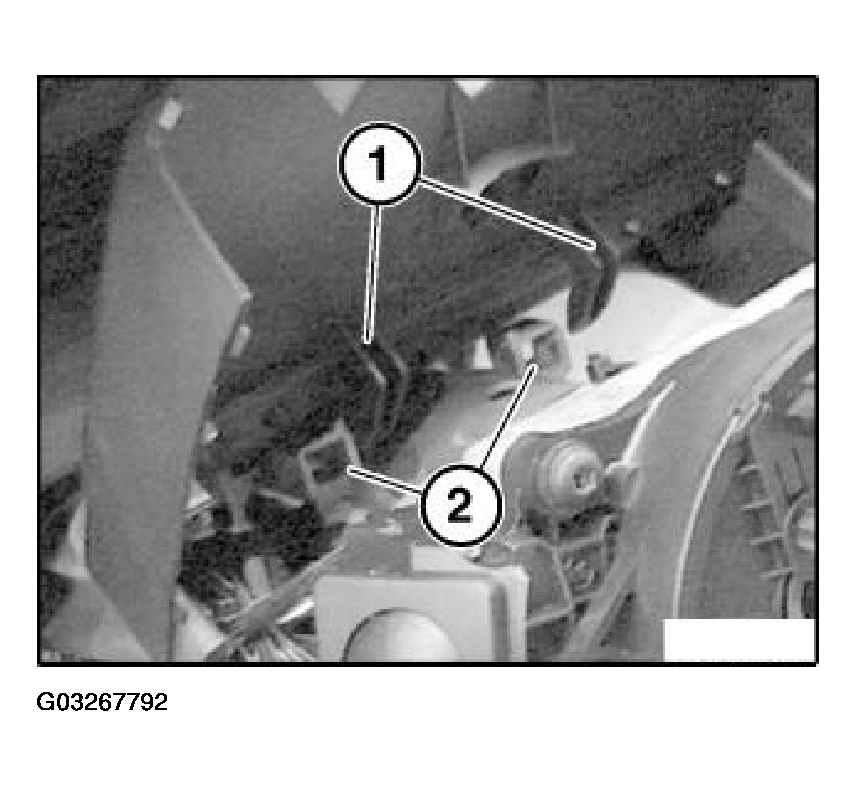

Insert hook (1) in mounts (2).

Fig 3: Installing Hook In Mounts

Courtesy of BMW OF NORTH AMERICA, INC.
