32 31 102 Replacing steering spindle sleeve

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 530i, 2007 BMW 525i, 2006 BMW 530i, 2006 BMW 525i, and 2005 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove lower section of steering spindle. See 32 31 070 Removing And Installing Or Replacing Lower Section Of Steering Spindle .
Remove accelerator pedal module. See 35 40 001 REMOVING AND INSTALLING/REPLACING ACCELERATOR PEDAL MODULE .

Remove sleeve (1) from bulkhead.

Installation:

Coat sleeve from outside with silicone grease and insert from passenger compartment. Arrow (1) on sleeve must point horizontally to left.

Check seating of sleeve in bulkhead, correct if necessary.

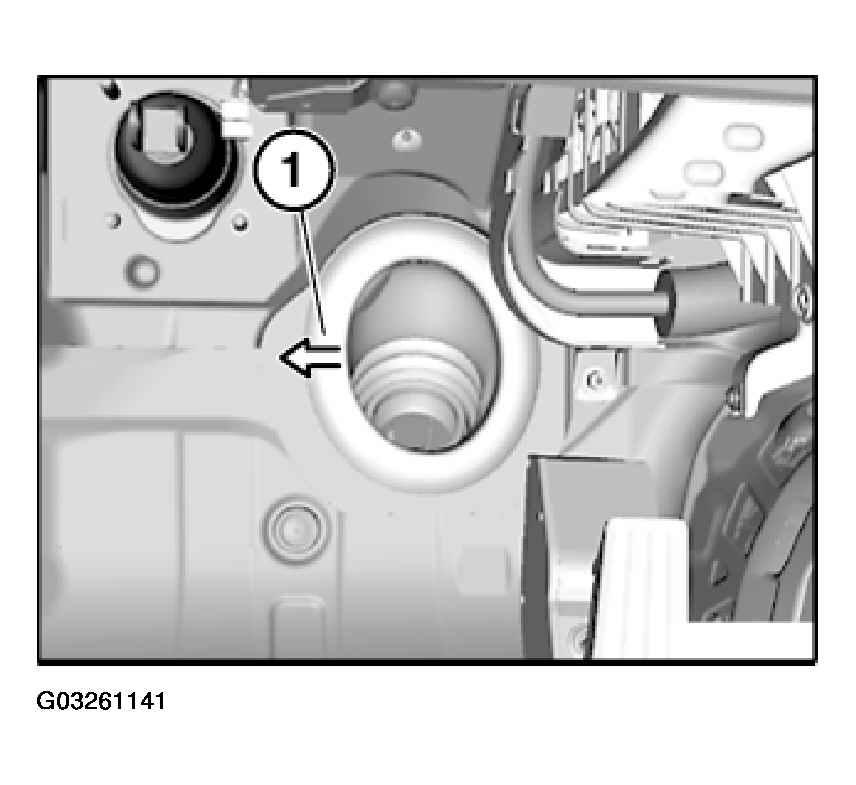

Fig 1: Removing Sleeve From Bulkhead

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Carry out Steering Angle Sensor Adjustment/Adjustment For Active Front Steering .
