32 31 070 Removing and installing or replacing lower section of steering spindle

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 530i, 2007 BMW 525i, 2006 BMW 530i, 2006 BMW 525i, and 2005 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: If the lower section of the steering spindle is separated from the power steering gear, this can result in damage to the contact ring when the steering wheel is turned.

After installation:

Carry out Steering Angle Sensor Adjustment/Adjustment For Active Front Steering

Necessary preliminary tasks:

Move steering wheel to straight-ahead position and turn ignition key to position 0
Remove steering gear cover at side

Release clamping screw.

Remove lower section of steering spindle from power steering gear.

Installation:

Tightening torque, see 32 31 1AZ in WHEEL & TIRES - TIGHTENING TORQUES .

Replace clamping screw.

Lower section of steering spindle and power steering gear can only be joined in one position.

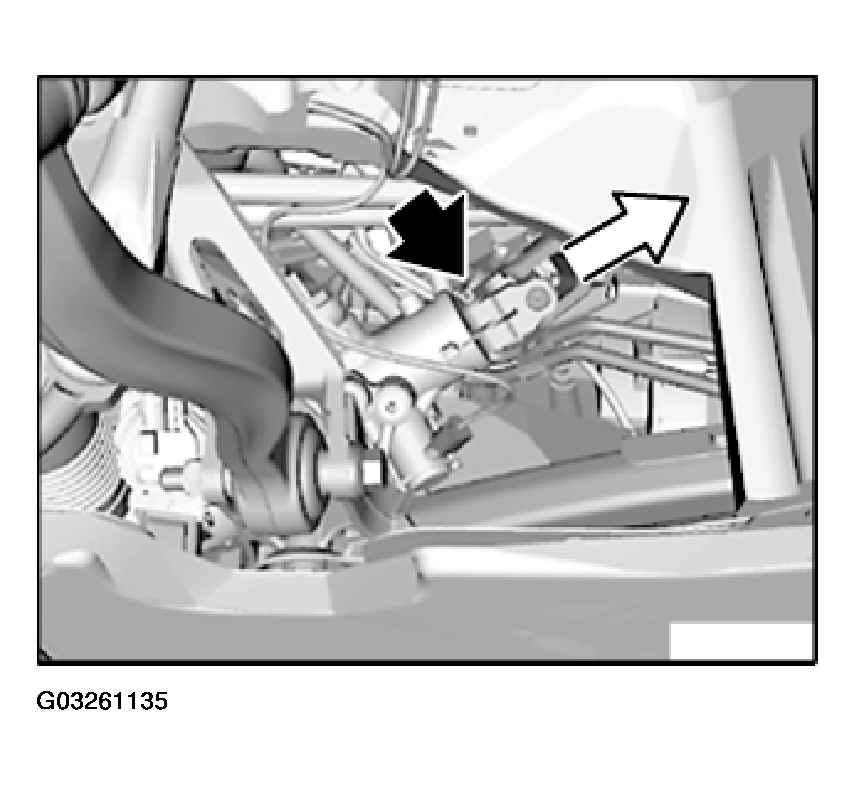

Fig 1: Removing Lower Section Of Steering Spindle From Power Steering Gear

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Make sure universal joint is correctly seated.

Remove trim panel for pedal assembly. See REMOVING AND INSTALLING/REPLACING TRIM PANEL FOR PEDAL ASSEMBLY .

When reinstalling lower section of steering spindle: Mark position of universal joint in relation to steering column.

Turn ignition key to position 1.

Turn steering wheel approx. 45°, hold securely and release clamping screw (1).

Turn steering wheel back and turn ignition key to position 0.

Detach lower section of steering spindle from steering column and remove.

Installation:

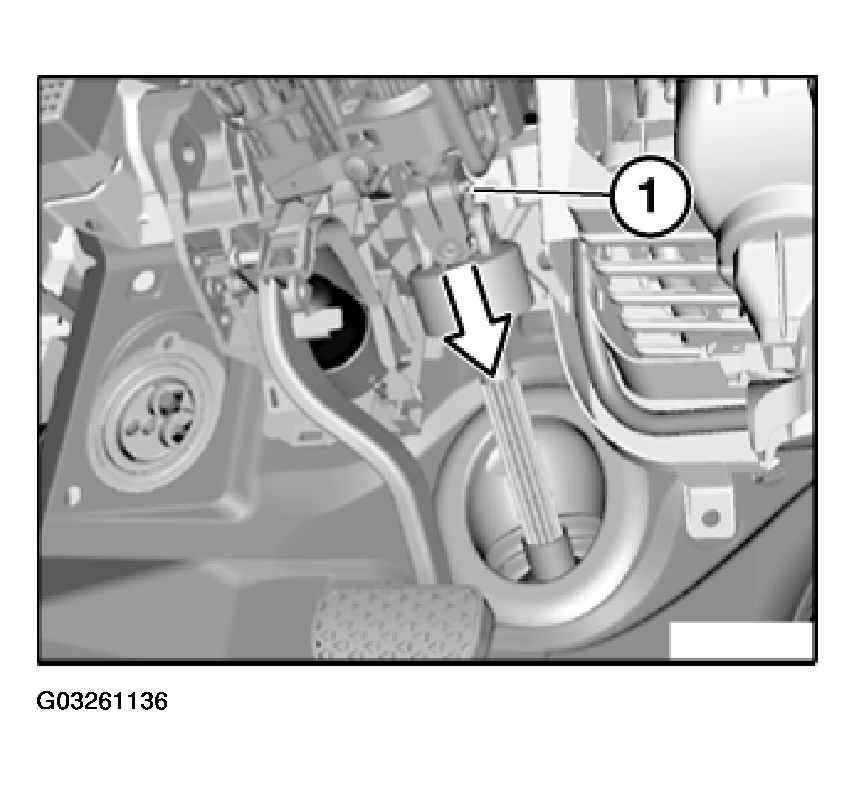

Fig 2: Releasing Clamping Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque, see 32 31 1AZ in WHEEL & TIRES - TIGHTENING TORQUES .

Clamping screw must rest in groove of steering column.

Replace clamping screw (1).
