32 31 090 Removing and installing/replacing steering column: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: To avoid damaging the coil spring cassette, it is necessary to remove the steering wheel because of the absence of a steering column lock!

Necessary preliminary tasks:

Move steering column into "extended" position
Disconnect BATTERY EARTH LEAD
Remove steering wheel. See STEERING WHEEL or SPORT STEERING WHEEL .
Remove trim panel for pedal mechanism. See TRIM PANEL (US ONLY) or TRIM PANEL (ECE ONLY) .
Remove steering column trims. See UPPER SECTION OF STEERING COLUMN TRIM and LOWER SECTION OF STEERING COLUMN TRIM .
Replacement only: Remove STEERING COLUMN CONTROL PANEL

IMPORTANT: Mark installation position (1) of steering spindle in relation to steering column.

Release clamping screw (2) and pull off steering spindle in direction of arrow.

Installation note:

Do not damage toothed shaft.

Recut thread in steering spindle.

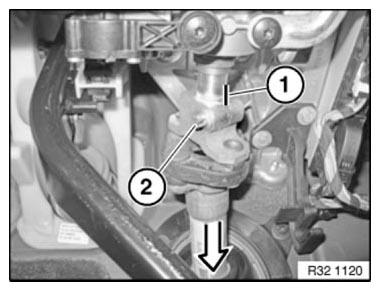

Fig 1: Identifying Steering Column And Clamping Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Replace clamping screw (2).

Clamping screw must rest in groove of upper steering spindle.

No subsequent retorquing permitted!

Tightening torque 32 31 3AZ .

Disconnect plug connection (1).

Unclip wiring harness (2) and lay to one side.

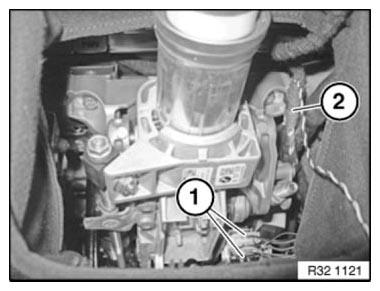

Fig 2: Identifying Plug Connection And Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 32 31 1AZ .

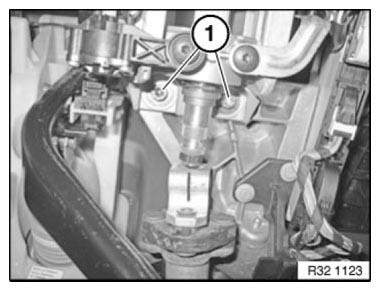

Fig 3: Identifying Steering Column Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Secure steering column against falling out. Release screws (1).

Tightening torque 32 31 1AZ .

Feed steering column upwards to remove.

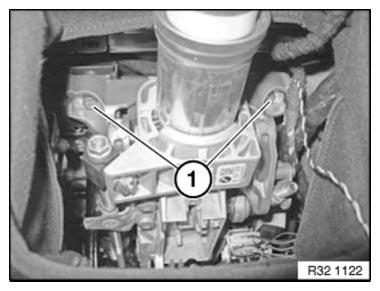

Fig 4: Identifying Steering Column Screws

Courtesy of BMW OF NORTH AMERICA, INC.
