32 31 020 Removing and installing/replacing lower section of steering column trim

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TOP SECTION OF STEERING COLUMN CASING .
Move steering column in "top" and "extended" position.

Press detent lugs outwards a little and unclip steering column trim downwards.

Installation:

Align steering column trim by means of detent lugs to steering column and press up as far as it will go.

Press steering column trim on both sides together a little and then press upwards completely until detent lugs snap into place.

Check installation position, correct if necessary.

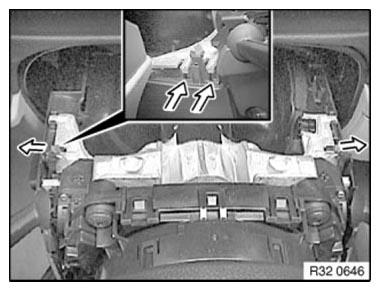

Fig 1: Pressing Detent Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Tilt steering column trim in downward direction.

Unlock plug connection (1) on steering column adjustment switch and (2) emergency starting aerial and disconnect.

Remove lower section of steering column trim.

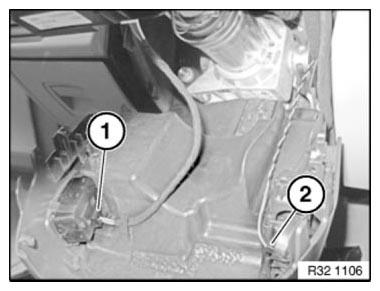

Fig 2: Identifying Emergency Starting Aerial And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
