32 31 003 Removing and installing/replacing upper section of steering column trim

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Move steering column in "bottom" and "extended" position.

IMPORTANT: Risk of damage!
Unclip steering column shroud (1) at side with special tool 00 9 317 .

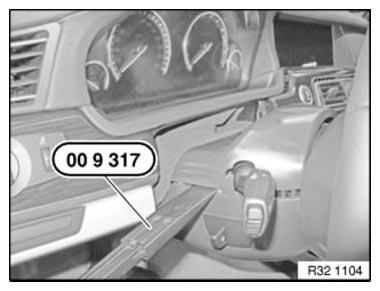

Fig 1: Identifying Steering Column Shroud

Courtesy of BMW OF NORTH AMERICA, INC.

Pull steering column trim (1) towards front.

Unclip steering column gap cover (1) from upper section of steering column trim (2).

Remove upper section of steering column trim (2).

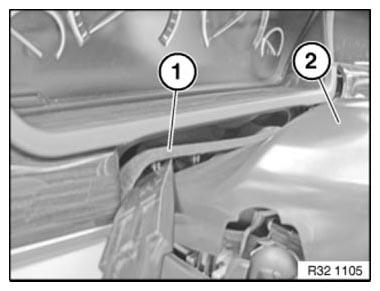

Fig 2: Identifying Steering Column Trim And Steering Column Gap Cover

Courtesy of BMW OF NORTH AMERICA, INC.
