Wiper start suppression function - GF82.30-P-3008PQ
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.
MODELS 203.0 /2 /7 as of 4/24/04

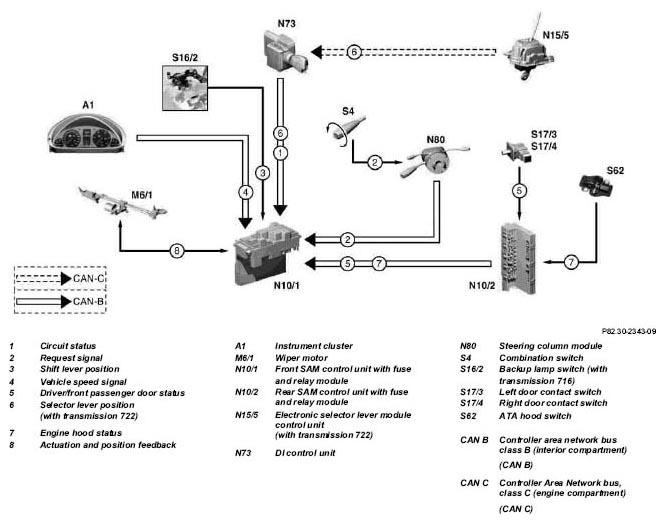

Function
Wiper operation is suppressed when:
- combination switch (S4) is in position "I" (windshield) and
- driver or passenger-side door is open
- speed is less than 5 km/h, or
- the engine hood is opened.
Opening the driver or passenger-side door does not interrupt wiper operation that is currently in progress. The wipers move to the park position.
The wipers resume operation after suppression if:
- the clutch is actuated (with transmission 716) or
- the selector lever is in position "D" or "R" (on transmission 722) or
- the speed is faster than 8 km/h or
- the combination switch (S4) is turned from position "I" (windshield) to position "II" or position "III".
| Combination switch, location/task/design/ function | GF82.30-P-2100PQ | ||
| Wiper motor, location/task/design/function | GF82.30-P-4104PP | ||
| Rear SAM control unit with fuse and relay module, location / task / design / function | GF54.21-P-4115PP | ||
| Electronic ignition switch control unit, location/ task/design/function | GF80.57-P-4102PP | ||
| Steering column module location/task | GF54.21-P-4125Q | ||
| Front SAM control unit with fuse and relay module location/task/design | GF54.21-P-4108PP |
