Combination switch, location/task/design/function - GF82.30-P-2100PQ
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.
MODELS 203.0 /2 /7 as of 24.4.04

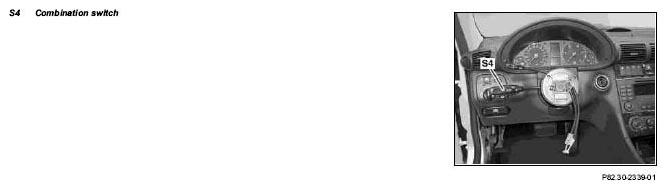

| Combination switch, location | The combination switch (S4) is mounted on the steering column. | ||
| Combination switch, purpose | The combination switch (S4) controls the following functions: Turn signals, high and low beams, headlamp flasher, windshield wiper system and windshield washer system. |
||
| Combination switch, design | The combination switch (S4) contains the left and right turn signal switch group, headlamp flasher/high beam switch, low beam switch, windshield washer system switch and the wipe switch. | ||
| Combination switch, function | Model 203.0 /7 | GF82.30-P-2100-04PQ | |
| Model 203.2 | GF82.30-P-2100-04PS |
