Wiper motor, location/task/design/function - GF82.30-P-4104PP
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.
MODELS 203.0 /2 /7, 209.3 /4
Illustrated on Model 203.0

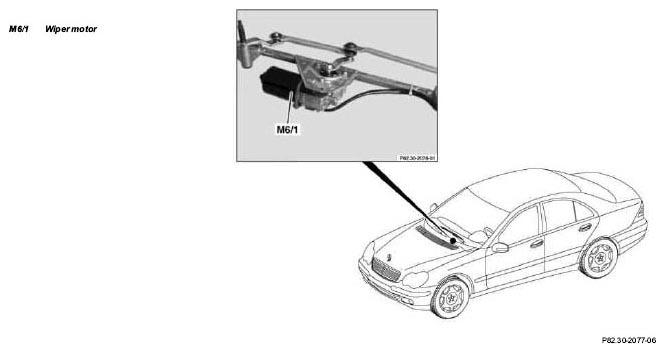

| Wiper motor, location | The wiper motor (M6/1) is in the engine compartment beneath the windshield. | ||
| Wiper motor, purpose | Windshield wiper motor with various speed stages. Guarantee exact wiper terminal position. |
||
| Wiper motor, design | The windshield wiper motor (M6/1) is comprised of an electric motor with three brushes and a transmission, and the cam switch on the output axle. | ||
| Wiper motor, function | GF82.30-P-4104-01S |
