Windshield wiper, function - GF82.30-P-3004PQ
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.
MODELS 203.0 /2 /7 as of 24.4.04
Function prerequisites:
- Circuit 15R ON
Function

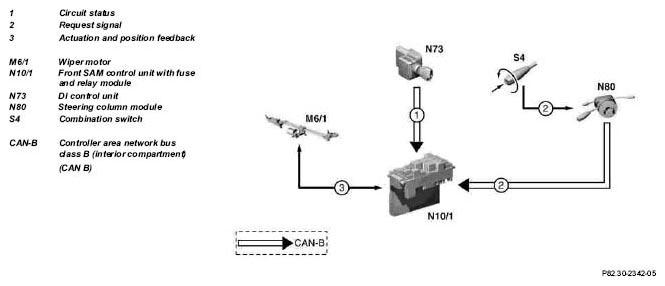

The function requests from the combination switch (S4) are relayed over the steering column module (N80) to the front SAM control unit with fuse and relay module (N10/1).
The front SAM control unit with fuse and relay module (N10/1) actuates the wiper motor (M6/1) in accordance with the requests.
- For continuous wiping at slow speed (stage 1, approx. 40 cycles per min.), turn combination switch (S4) to position "II".
- For continuous wiping at fast speed (stage 2, approx. 60 cycles per min.), turn combination switch (S4) to position "III".
- For touch wiping, briefly push combination switch (S4) to detent point.
By briefly pressing the combination switch (S4), a single wipe is performed, when pressing for longer the wiping continues in accordance with the duration that the switch is actuated. Touch wiping takes place independently of the wiper level that has been selected.
| Slowing down wiper motor, function | GF82.30-P-4007PP | ||
| Anti-block device for wiper motor, function | GF82.30-P-4008PP | ||
| Combination switch, location/task/design/ function | GF82.30-P-2100PQ | ||
| Wiper motor, location/task/design/function | GF82.30-P-4104PP | ||
| Rear SAM control unit with fuse and relay module, location / task / design / function | GF54.21-P-4115PP | ||
| Electronic ignition switch control unit, location/ task/design/function | GF80.57-P-4102PP | ||
| Steering column module location/task | GF54.21-P-4125Q | ||
| Front SAM control unit with fuse and relay module location/task/design | GF54.21-P-4108PP |
