Windshield washer, function - GF82.35-P-3002PQ

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.

MODELS 203.0 /2 /7 as of 24.4.04

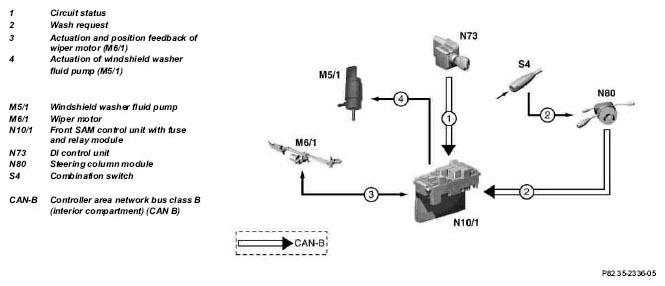

Fig 1: Windshield Washer Function Diagram

Function prerequisites:

Circuit 15R ON

Function

The function washing is activated by pressing the combination switch (S4) beyond the catch point.

In this case, the windshield washer fluid pump (M5/1) is actuated directly by the front SAM control unit with fuse and relay module (N10/1).

If washing takes place while

level 2 wiping is in progress, wiping takes place at level 2.
level 1 or intermittent wiping is in progress, wiping takes place at level 1.
the combination switch (S4) is in the park position, wiping takes place at level 1.

If the windshield washer fluid pump (M5/1) is continuously requested for 15 seconds a "stuck button" is detected and the windshield washer fluid pump (M5/1) is switched off.

Follow-up wiping

The number of afterwipe processes depends on the time for which the combination switch (S4) is operated. Afterwiping becomes active as soon as the combination switch (S4) is no longer activated.

If the windshield washer fluid pump (M5/1) is requested for an activation time of less than 1 second, a single afterwipe takes place. If the initial activation time is greater than 1 second, a triple afterwipe take place. If within the afterwipe period a new wash is actuated, then a triple afterwipe is always performed.

If afterwiping takes place while level 2 is active, the afterwiping also takes place at level 2. If afterwiping takes place while level 1 or intermittent wiping is active, afterwiping takes place at level 1; the same applies if the combination switch (S4) is in the park position.

	Slowing down wiper motor, function		GF82.30-P-4007PP
	Anti-block device for wiper motor, function		GF82.30-P-4008PP
	Combination switch, location/task/design/ function		GF82.30-P-2100PQ
	Wiper motor, location/task/design/function		GF82.30-P-4104PP
	Windshield washer fluid pump location/task		GF82.35-P-4108PP
	Rear SAM control unit with fuse and relay module, location / task / design / function		GF54.21-P-4115PP
	Electronic ignition switch control unit, location/ task/design/function		GF80.57-P-4102PP
	Steering column module location/task		GF54.21-P-4125Q
	Front SAM control unit with fuse and relay module location/task/design		GF54.21-P-4108PP
