Windshield intermittent wiping, function - GF82.30-P-3003PQ
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.
MODELS 203.0 /2 /7 as of 24.4.04 except CODE (345a) Rain sensor

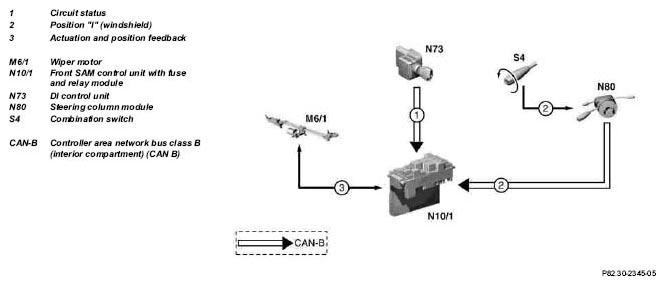

Fig 1: Windshield Intermittent Wiping Function Diagram - Models 203.0 /2 /7 As Of 24.4.04 Except Code (345A)
Function prerequisites:
- Circuit 15R ON
Function
The intermittent wiping function is switched on by turning the combination switch (S4) to position "I" (windshield).
The front SAM control unit with fuse and relay module (N10/1) actuates the wiper motor (M6/1) at fixed intervals in intermittent operation.
Interruption of intermittent pause
If another wiper function is requested during an intermittent pause, this function is executed without taking the intermittent pause into consideration. After completion of this function, the intermittent pause is started again.
| Slowing down wiper motor, function | GF82.30-P-4007PP | ||
| Anti-block device for wiper motor, function | GF82.30-P-4008PP | ||
| Combination switch, location/task/design/ function | GF82.30-P-2100PQ | ||
| Wiper motor, location/task/design/function | GF82.30-P-4104PP | ||
| Electronic ignition switch control unit, location/ task/design/function | GF80.57-P-4102PP | ||
| Steering column module location/task | GF54.21-P-4125Q | ||
| Front SAM control unit with fuse and relay module location/task/design | GF54.21-P-4108PP |
