Position sensor, location/task/function - GF27.19-P-5129RMZ: Notes

TRANSMISSION 722.6 in model 209.376 as of 1.6.03, 209.476, 211.076 as of 1.9.03, 211.276, 215.374 /379, 219.376, 220.074 /174 /179, 230.474 as of 1.9.03, 230.479

TRANSMISSION 722.6 in MODEL 209, 211, 230 with CODE (428) Steering wheel shift buttons

Illustrated on model 230.474

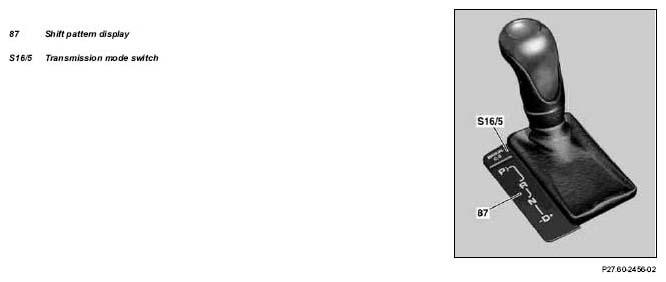

Fig 1: Identifying Shift Pattern Display And Transmission Mode Switch - Illustrated On Model 230.474
G04732571
  Position display, location The position display is accommodated in the center shift console cover. In addition a gear/ driving program display is located in the instrument cluster (A1).
  Position display, task   GF27.19-P-5129-02RMZ
  Shift pattern display, function Model 209, 211, 219, 230 GF27.19-P-5129-03RMZ
    Model 215, 220 GF27.19-P-5129-03GAZ
