Shift pattern display, function - GF27.19-P-5129-03GAZ

TRANSMISSION 722.6 in MODEL 215.374/379, 220.074/174/179

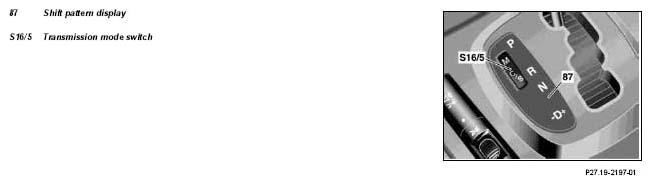

Fig 1: Identifying Shift Pattern Display And Transmission Mode Switch (Model 215.374)
G04840441

The position indicator and program selection indicator in the instrument cluster (A1) is actuated via the Controller Area Network-bus class C (engine compartment) (CAN-C). The program selection performed with the driving program switch (S16/5) is sent from the ETC control unit (N15/3) to the instrument cluster A1 and the selector lever position is sent from the electronic selector lever module control unit (N15/5) to the instrument cluster (A1).

The selector scheme symbols (87) are illuminated when the driving lamps are switched on.

Program selection "C/S"

The program selection performed at the transmission mode switch (S16/5) remains stored after a driving time of approx.

1 minute and is then displayed once the engine is started again. The driving time of approx. 1 minute is necessary because of the system.

Program selection "M"

The program selection "M" (Manual program) performed at the transmission mode switch (S16/5) does not remain stored. The sport program "S" is displayed once the engine is started.
