Position display, task - GF27.19-P-5129-02RMZ

Transmission 722.6 in model 209.376 as of 1.6.03, 209.476, 211.076 as of 01.09.03, 211.276, 215.374/379, 219.376, 220.074/174/179, 230.474 as of 01.09.03, 230.479

Transmission 722.6 in models 209, 211, 230 with code (428) steering wheel shift buttons

Illustrated on model 230.474

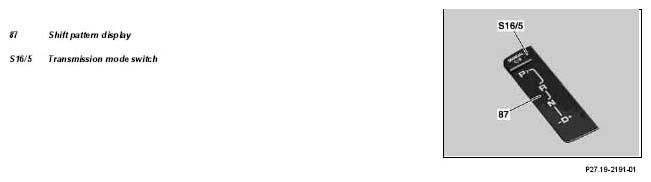

Fig 1: Identifying Shift Pattern Display And Transmission Mode Switch - Illustrated On Model 230.474
G04840440

The task of the position indicator is to display optically the position of the selector lever, selected gear range (for program selector "C/S") or the shifted gear (for program selection "M") and the program selection performed at the transmission mode switch (S16/5).

Via the selector scheme symbols (87) the alternative selector lever positions and their sequence are shown symbolically.
