Dashboard Installation

Replacement Parts

Bolts
Quantity:1
Location use: Dashboard
  1. Rotate the plate nut by hand in the direction of the arrow shown in the figure below until it is seated.
    CAUTION:
    • After removing the dashboard, the plate nuts of the member junctions will have loosened. If the dashboard is installed with the plate nuts loosened, the plate nuts may contact the vehicle body, causing a dent or damage to the coating film, and the dashboard installation will be difficult. Before inserting the dashboard into the cabin, seat the plate nuts of the member junctions.
    • If the plate nuts are tightened excessively, the plate nuts may not move when installing the bolts, resulting in damage to the member junction tab and the vehicle body. After seating the plate nuts, verify that they can be rotated by hand.
    NOTE:
    • If the plate nuts cannot be rotated by hand, loosen the plate nuts using a hexagonal wrench.

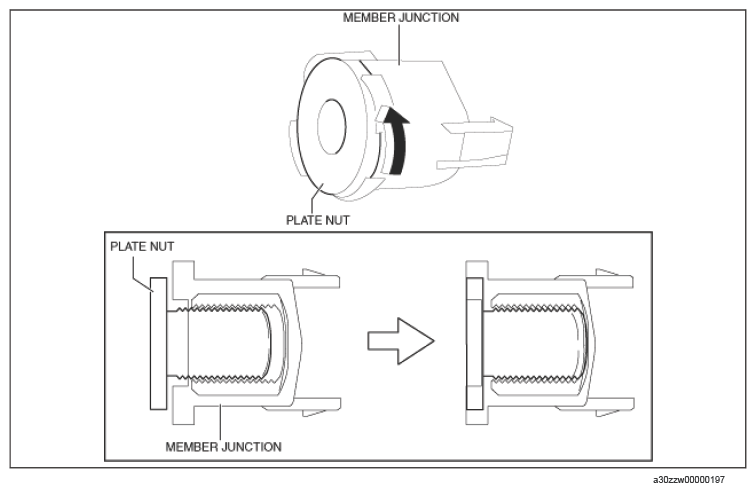

    G15743127Courtesy of MAZDA MOTORS CORP.
  2. Verify that the member junction tabs are engaged to the dashboard.
    CAUTION:
    • If the member junction tabs are disengaged from the dashboard when inserting the dashboard into the cabin, the vehicle body could be damaged. Before inserting the dashboard into the cabin, verify that the member junction tabs are engaged with the dashboard.

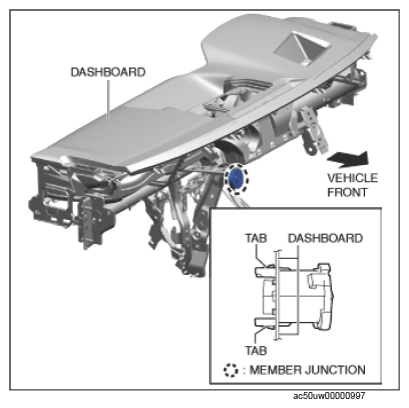

    G15743128Courtesy of MAZDA MOTORS CORP.
  3. Insert the dashboard from either the driver-side or passenger-side front door opening.
  4. Move the dashboard in the direction of the arrow shown in the figure below and attach the guides to the body panel.

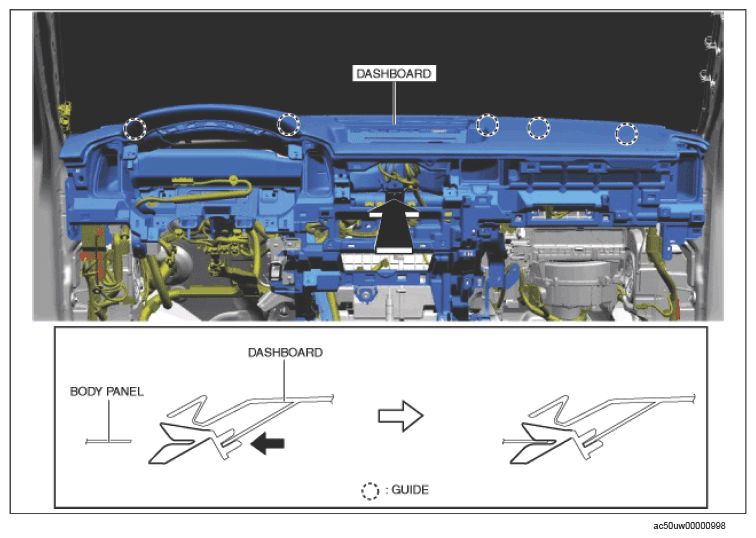

    G15743129Courtesy of MAZDA MOTORS CORP.
  5. Seat bolts (1).

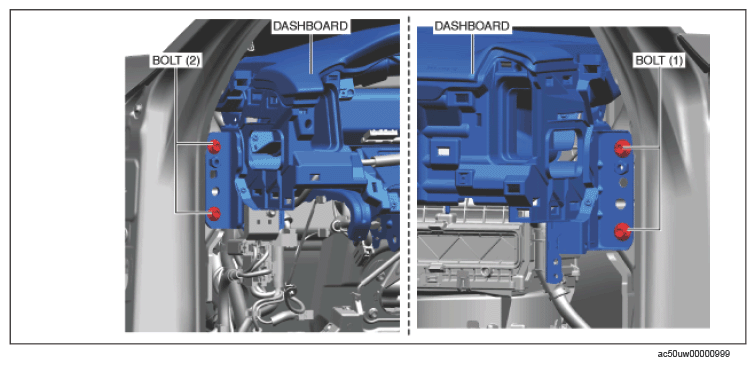

    G15743130Courtesy of MAZDA MOTORS CORP.
  6. Seat bolts (2).
  7. Tighten the new bolts temporarily.
    CAUTION:
    • If the bolts are reused, the plate nuts of the member junctions cannot be moved and the dashboard frame and the vehicle body could be damaged. Always replace the bolts with new ones.

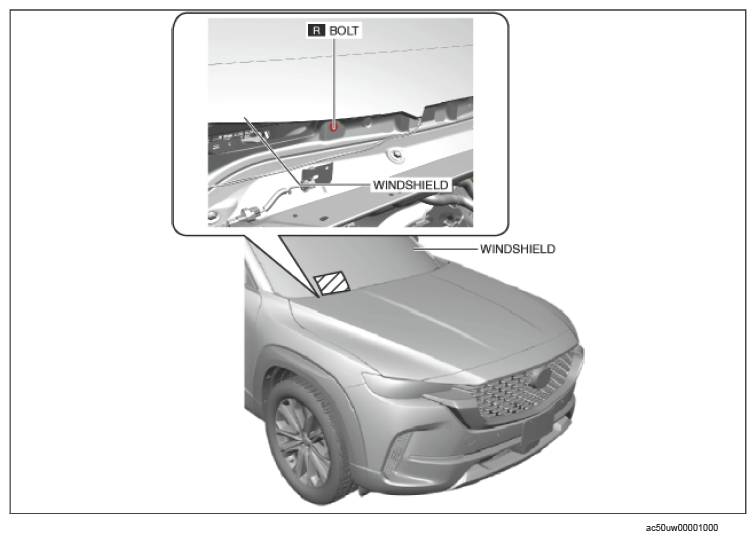

    G15743131Courtesy of MAZDA MOTORS CORP.

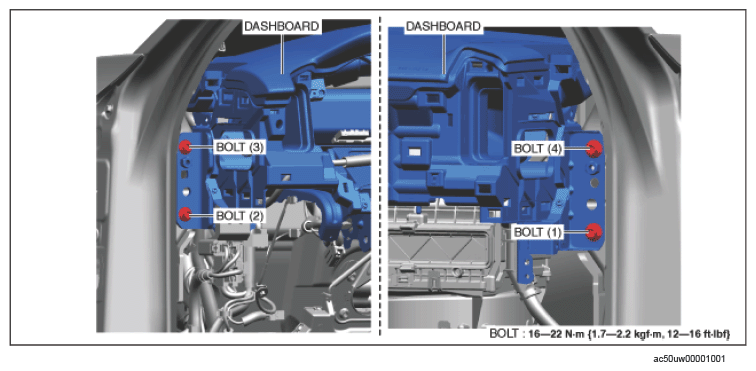

  8. Install the bolts in the order of (1), (2), (3), then (4).
    Fig 1: Dashboard Bolts Tightening Sequence
    G15743132Courtesy of MAZDA MOTORS CORP.

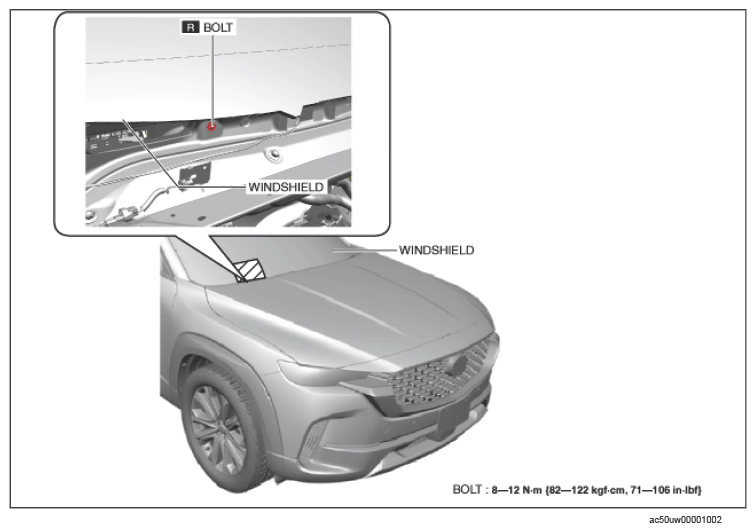

  9. Install the bolt.
    Fig 2: Windshield And Bolt With Torque Specifications
    G15743133Courtesy of MAZDA MOTORS CORP.

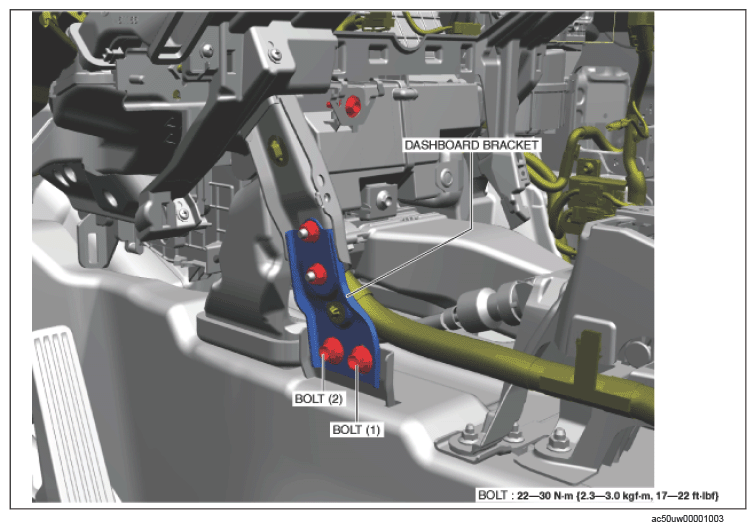

  10. Install the dashboard bracket.
    Fig 3: Dashboard Bracket Bolts Tightening Sequence With Torque Specifications
    G15743134Courtesy of MAZDA MOTORS CORP.
  11. Install the bolts in the order of (1) then (2).

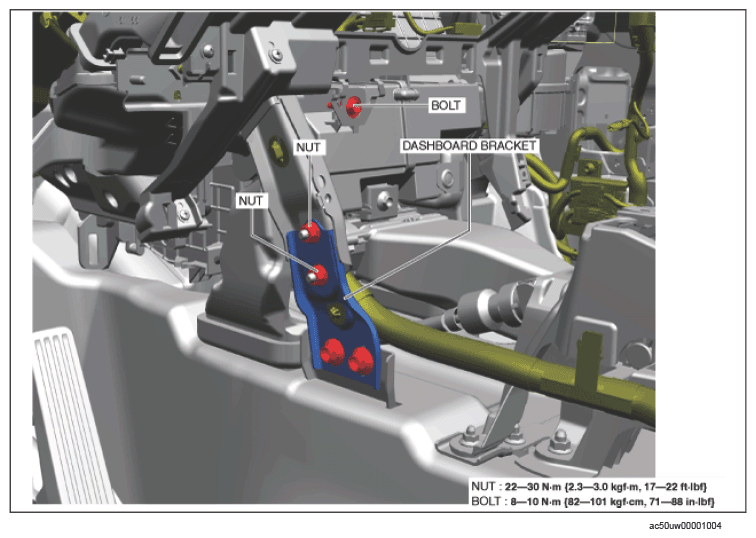

  12. Install the nuts.
    Fig 4: Dashboard Bracket, Nuts And Bolt With Torque Specifications
    G15743135Courtesy of MAZDA MOTORS CORP.
  13. Install the bolt.
  14. Connect the connectors.

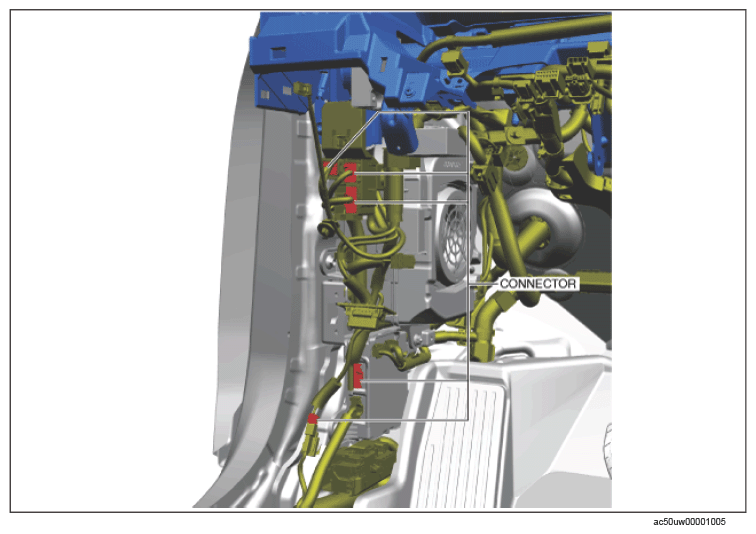

    G15743136Courtesy of MAZDA MOTORS CORP.

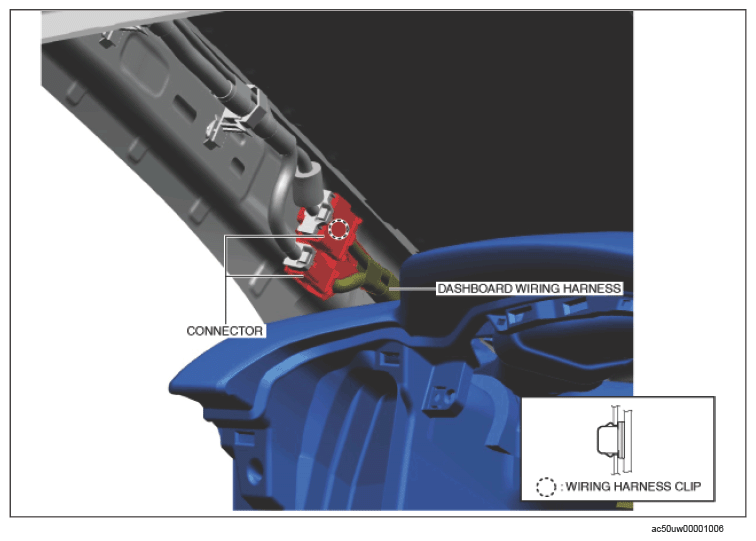

  15. Connect the connectors and attach the wiring harness clip.
    G15743137Courtesy of MAZDA MOTORS CORP.
  16. Connect the connectors and attach the wiring harness clip.

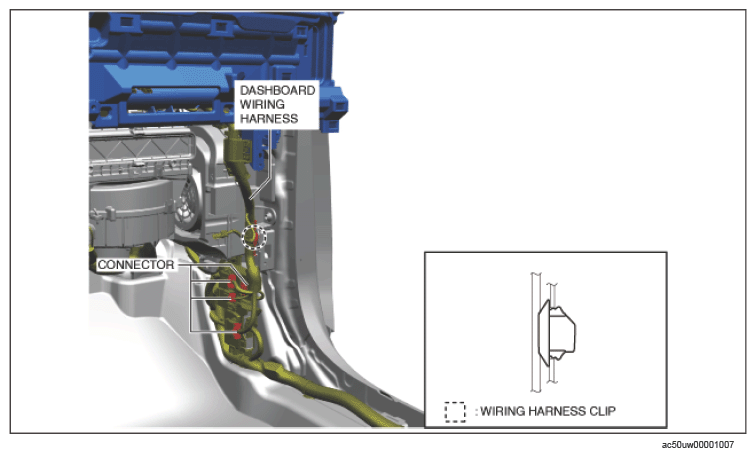

    G15743138Courtesy of MAZDA MOTORS CORP.
  17. Install the rear washer hose D.
  18. Connect the connectors and attach the wiring harness clips A, B, and C.

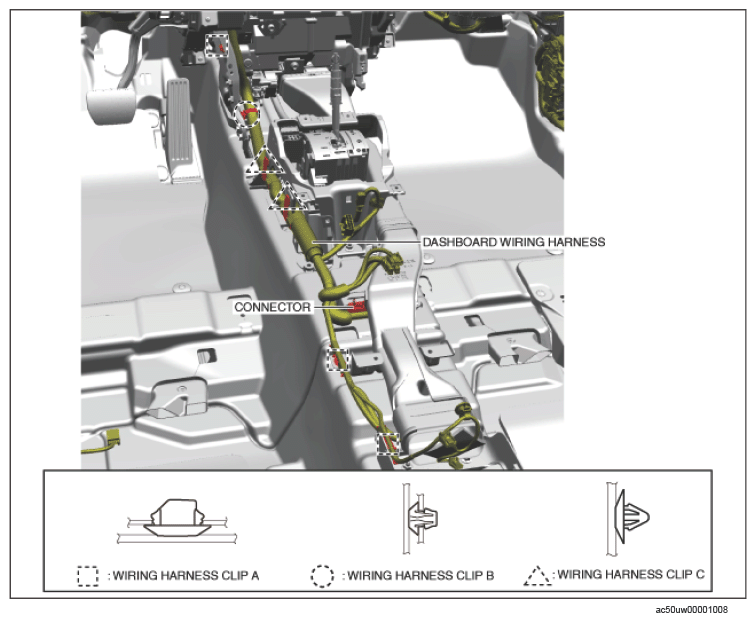

    G15743139Courtesy of MAZDA MOTORS CORP.
  19. Install the following parts:
    1. Dashboard side cover (See DASHBOARD SIDE COVER REMOVAL/INSTALLATION .)
    2. Connectivity master unit (CMU) (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION .)
    3. Center display (See CENTER DISPLAY REMOVAL/INSTALLATION .)
    4. Speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION .)
    5. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
    6. Steering column component (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
    7. Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
    8. Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION .)
    9. Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION .)
    10. Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
    11. Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    12. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    13. Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
    14. Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
    15. Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .) (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .)
    16. Center lower panel (See CENTER LOWER PANEL REMOVAL/INSTALLATION .)
    17. Driver-side knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
    18. Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
    19. Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    20. Passenger-side ventilator grille (See VENTILATOR GRILLE REMOVAL/INSTALLATION .)
    21. Passenger-side knee air bag module (with passenger-side knee air bag module) (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
    22. Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL .) (See PASSENGER-SIDE LOWER PANEL INSTALLATION .)
    23. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    24. Glove compartment (without passenger-side knee air bag module) (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    25. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    26. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    27. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    28. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    29. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
    30. Console-up (See CONSOLE-UP REMOVAL/INSTALLATION .)
    31. Wireless charger (Qi) (with wireless charger (Qi)) (See WIRELESS CHARGER (Qi) REMOVAL/INSTALLATION .)
    32. Upper panel (without wireless charger (Qi)) (See UPPER PANEL REMOVAL/INSTALLATION .)
    33. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    34. Front console upper panel (See FRONT CONSOLE UPPER PANEL REMOVAL/INSTALLATION .)
    35. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    36. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    37. Select lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
  20. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
