Driver-Side Lower Panel Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    2. Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    3. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    4. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)

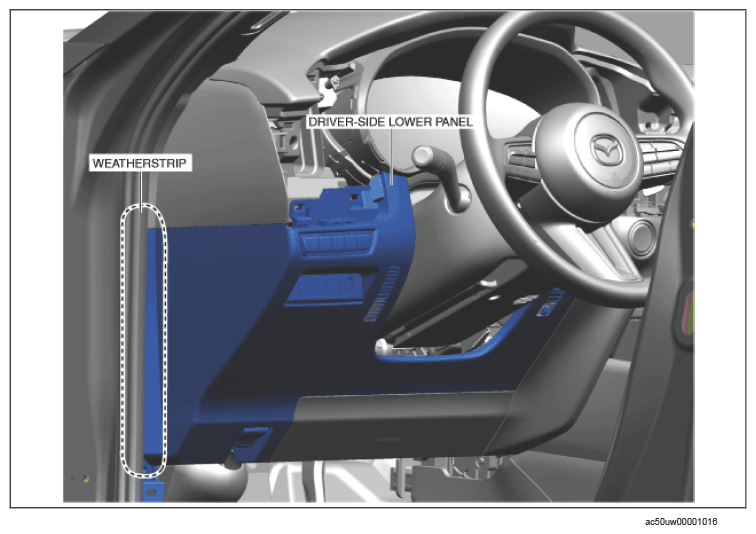

  3. Partially peel back the weatherstrip.
    G15743160Courtesy of MAZDA MOTORS CORP.

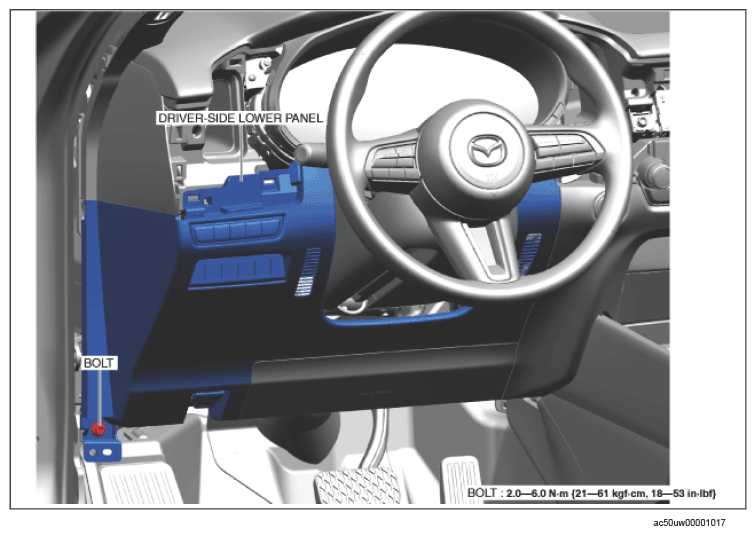

  4. Remove the bolt.
    Fig 1: Driver-Side Lower Panel And Bolt With Torque Specifications
    G15743161Courtesy of MAZDA MOTORS CORP.

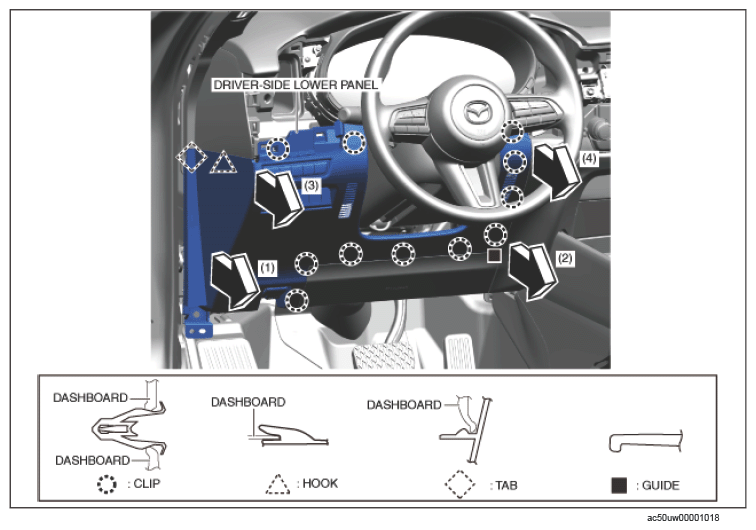

  5. Move the driver-side lower panel in the order of arrows (1), (2), (3), and (4) shown in the figure below, and remove it while detaching the clips, hook, tabs, and guide.
    G15743162Courtesy of MAZDA MOTORS CORP.

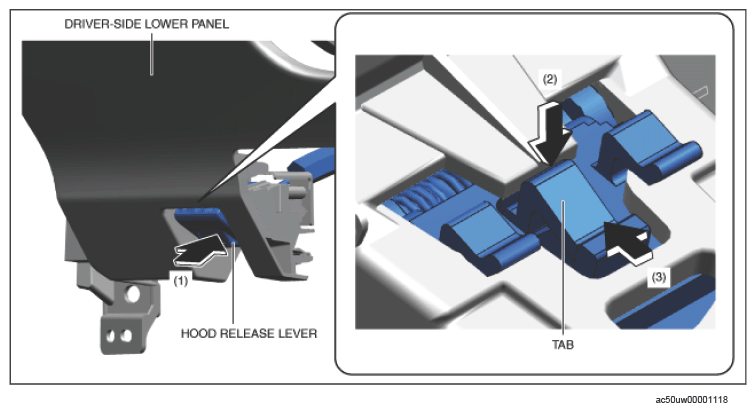

  6. While pressing the hood release lever in the direction of arrow (1) shown in the figure below, press the tab in the direction of arrow (2) and detach the tab from the driver-side lower panel.
    G15743163Courtesy of MAZDA MOTORS CORP.
  7. Remove the hood release lever in the direction of arrow (3) shown in the figure above.
  8. Disconnect the cluster switch connector.

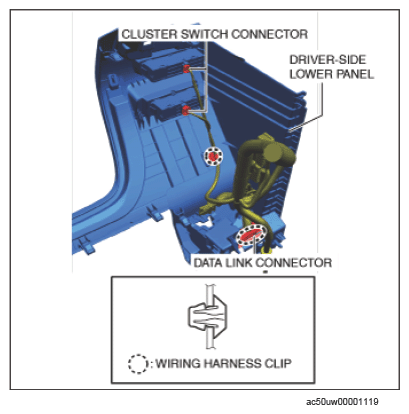

    G15743164Courtesy of MAZDA MOTORS CORP.
  9. Remove the data link connector.
  10. Remove wiring harness clips A and B.
  11. Install in the reverse order of removal.
