Cluster Switch Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    2. Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    3. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    4. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    5. Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)

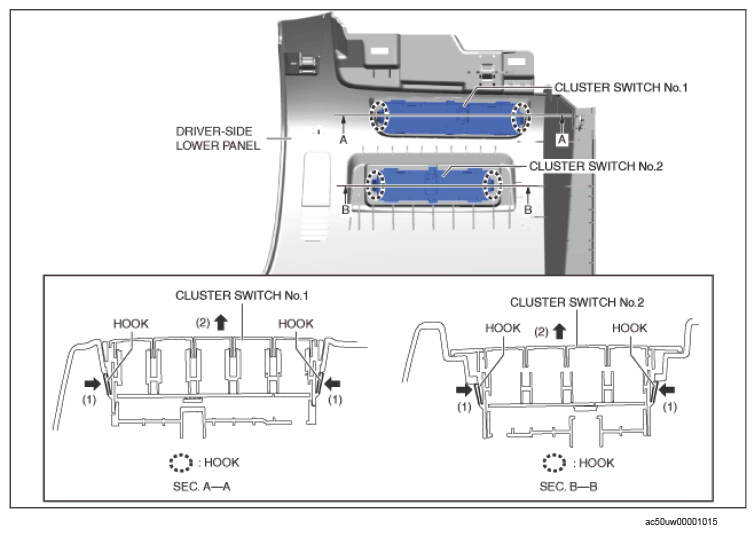

  3. With the hooks pressed in the direction of arrow (1) shown in the figure below, push out cluster switch No. 1 in the direction of arrow (2) and remove it from the driver-side lower panel.
    G15743113Courtesy of MAZDA MOTORS CORP.
  4. With the hooks pressed in the direction of arrow (1) shown in the figure above, push out cluster switch No. 2 in the direction of arrow (2) and remove it from the driver-side lower panel.
  5. Install in the reverse order of removal.
