Lock And Opener

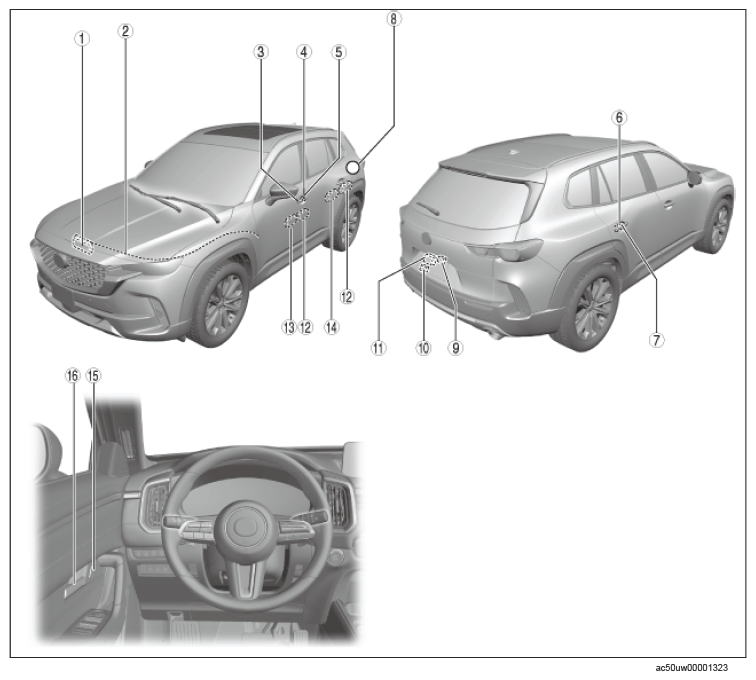

Fig 1: Security And Locks Components Location - Lock And Opener

Courtesy of MAZDA MOTORS CORP.

SECURITY AND LOCKS COMPONENT OPERATIONS

Component no.	Refer to
1	Hood latch (See HOOD LATCH REMOVAL/INSTALLATION .) (See HOOD LATCH SWITCH INSPECTION .)
2	Hood release cable (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
3	Front outer handle (See FRONT OUTER HANDLE REMOVAL/INSTALLATION .)
4	Front outer handle bracket (See FRONT OUTER HANDLE BRACKET REMOVAL/INSTALLATION .)
5	Front door key cylinder (See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION .)
6	Rear outer handle (See REAR OUTER HANDLE REMOVAL/INSTALLATION .)
7	Rear outer handle bracket (See REAR OUTER HANDLE BRACKET REMOVAL/INSTALLATION .)
8	Fuel-filler lid lock actuator (See FUEL-FILLER LID LOCK ACTUATOR REMOVAL/INSTALLATION .) (See FUEL-FILLER LID LOCK ACTUATOR INSPECTION .) (See FUEL-FILLER LID LOCK ACTUATOR SHORT-CORD REMOVAL/INSTALLATION .)
9	Liftgate opener switch (See LIFTGATE OPENER SWITCH REMOVAL/INSTALLATION .) (See LIFTGATE OPENER SWITCH INSPECTION .)
10	Liftgate lock striker (See LIFTGATE LOCK STRIKER REMOVAL/INSTALLATION .)
11	Liftgate latch and lock actuator (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .) (See LIFTGATE LATCH AND LOCK ACTUATOR INSPECTION .)
12	Door lock striker (See DOOR LOCK STRIKER REMOVAL/INSTALLATION .) (See DOOR LOCK STRIKER ADJUSTMENT .)
13	Front door latch and lock actuator (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .) (See FRONT DOOR LATCH AND LOCK ACTUATOR INSPECTION .)
14	Rear door latch and lock actuator (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .) (See REAR DOOR LATCH AND LOCK ACTUATOR INSPECTION .)
15	Door lock switch (See DOOR LOCK SWITCH REMOVAL/INSTALLATION .) (See DOOR LOCK SWITCH INSPECTION .)
16	Inner handle (See INNER HANDLE REMOVAL/INSTALLATION .)
