Liftgate Lock Striker Removal/Installation

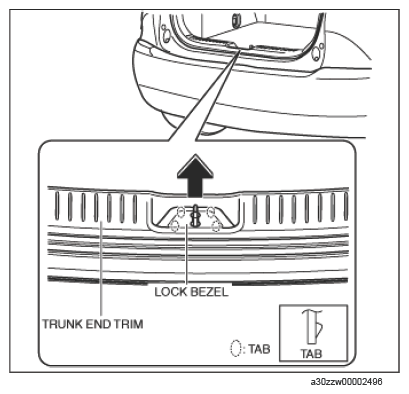

Pull the lock bezel in the direction of the arrow shown in the figure below and detach the lock bezel tabs from the trunk end trim.

Courtesy of MAZDA MOTORS CORP.
Remove the lock bezel.
Remove the bolts.

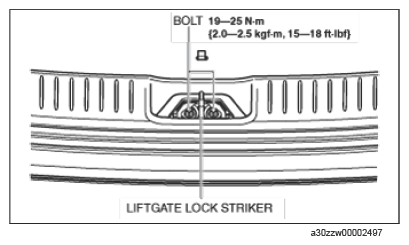

Fig 1: Liftgate Lock Striker And Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the liftgate lock striker.
Install in the reverse order of removal.
Adjust the liftgate. (See LIFTGATE ADJUSTMENT .)
