Liftgate Opener Switch Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts.
    1. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    2. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    3. Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
    4. Door lock switch (liftgate) (with advanced keyless entry system)/Power liftgate (PLG) rear switch (with power liftgate) (See DOOR LOCK SWITCH REMOVAL/INSTALLATION .) (See POWER LIFTGATE (PLG) REAR SWITCH REMOVAL/INSTALLATION .)
    5. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
    6. Rear finisher (See REAR FINISHER REMOVAL/INSTALLATION .)

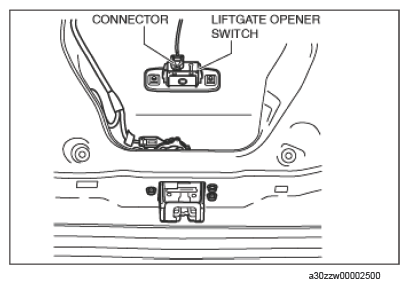

  3. Disconnect the connector.
    G15742909Courtesy of MAZDA MOTORS CORP.

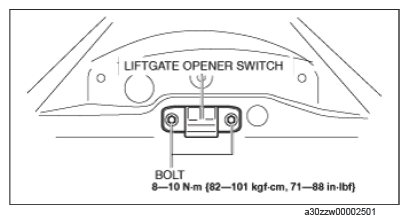

  4. Remove the bolts.
    Fig 1: Liftgate Opener Switch And Bolts With Torque Specifications
    G15742910Courtesy of MAZDA MOTORS CORP.

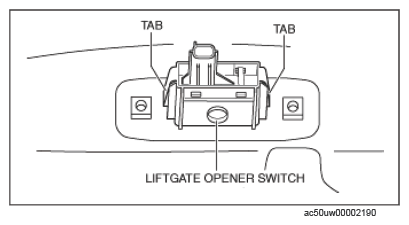

  5. Detach the tabs of the liftgate opener switch from the liftgate and remove the liftgate opener switch.
    G15742911Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
