Map Light Inspection

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
1. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
2. Female wedge (See FEMALE WEDGE REMOVAL/INSTALLATION .)
3. Front header trim (See FRONT HEADER TRIM REMOVAL/INSTALLATION .)
4. Map light (See MAP LIGHT REMOVAL/INSTALLATION .)
Verify that the continuity between the map light terminals is as indicated in the table.

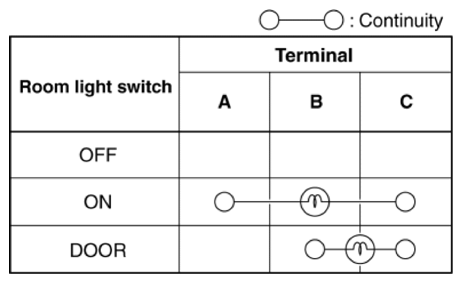

Fig 1: Map Light Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.

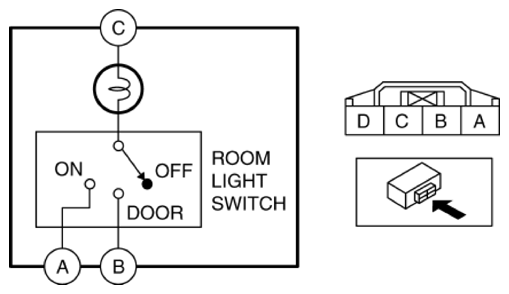

Fig 2: Checking Continuity Between Map Light Terminals
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the map light bulb or the map light. (See MAP LIGHT BULB REMOVAL/INSTALLATION .) (See MAP LIGHT REMOVAL/INSTALLATION .)
