Map Light Removal/Installation
WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the following parts:
- A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
- Female wedge (See FEMALE WEDGE REMOVAL/INSTALLATION .)
- Front header trim (See FRONT HEADER TRIM REMOVAL/INSTALLATION .)

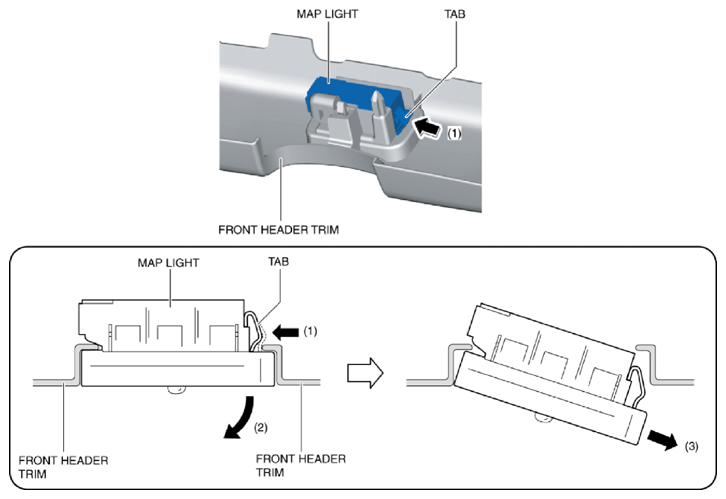

- While pressing the map light tab in the direction of arrow (1) shown in the figure, press the map light in the direction of arrow (2) to detach the map light tab from the front header trim.
- Pull the map light in the direction of arrow (3) shown in the figure and remove it from the front header trim.
- Install in the reverse order of removal.
