Exterior Trim Location Index: Notes

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

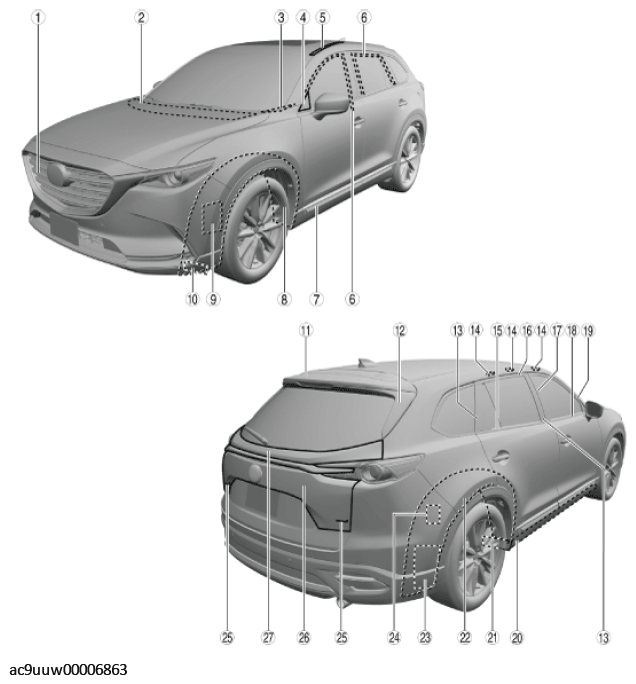

Fig 1: Exterior Trim Components Location

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	RADIATOR GRILLE (See RADIATOR GRILLE REMOVAL/INSTALLATION .) (See RADIATOR GRILLE DISASSEMBLY/ASSEMBLY .)
2	COWL GRILLE (See COWL GRILLE REMOVAL/INSTALLATION .)
3	FRONT FENDER MOLDING (See FRONT FENDER MOLDING REMOVAL/INSTALLATION .)
4	SAIL GARNISH (See SAIL GARNISH REMOVAL/INSTALLATION .)
5	ROOF MOLDING (See ROOF MOLDING REMOVAL ) (See ROOF MOLDING INSTALLATION .)
6	DOOR SASH FILM (See DOOR SASH FILM REMOVAL .) (See DOOR SASH FILM INSTALLATION .)
7	SIDE GARNISH (See SIDE GARNISH REMOVAL/INSTALLATION .)
8	FRONT MUDGUARD (See FRONT MUDGUARD REMOVAL/INSTALLATION .)
9	FRONT SPLASH SHIELD (See FRONT SPLASH SHIELD REMOVAL/INSTALLATION .)
10	FRONT DEFLECTOR (See FRONT DEFLECTOR REMOVAL/INSTALLATION .)
11	REAR SPOILER (See REAR SPOILER REMOVAL ) (See REAR SPOILER INSTALLATION .)
12	SIDE SPOILER (See SIDE SPOILER REMOVAL .) (See SIDE SPOILER INSTALLATION .)
13	REAR DOOR GARNISH (See REAR DOOR GARNISH REMOVAL .) (See REAR DOOR GARNISH INSTALLATION .)
14	ROOF CARRIER BRACKET (See ROOF CARRIER BRACKET REMOVAL/INSTALLATION .)
15	REAR BELTLINE MOLDING (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION .)
16	REAR SASH MOLDING (See REAR SASH MOLDING REMOVAL .) (See REAR SASH MOLDING INSTALLATION .)
17	FRONT DOOR GARNISH (See FRONT DOOR GARNISH REMOVAL .) (See FRONT DOOR GARNISH INSTALLATION .)
18	FRONT BELT LINE MOLDING (See FRONT BELTLINE MOLDING REMOVAL/INSTALLATION .)
19	FRONT SASH MOLDING (See FRONT SASH MOLDING REMOVAL .) (See FRONT SASH MOLDING INSTALLATION .)
20	SIDE STEP MOLDING (See SIDE STEP MOLDING REMOVAL .) (See SIDE STEP MOLDING INSTALLATION .)
21	REAR DEFLECTOR (See REAR DEFLECTOR REMOVAL/INSTALLATION .)
22	REAR MUDGUARD (See REAR MUDGUARD REMOVAL/INSTALLATION .)
23	REAR SPLASH SHIELD (See REAR SPLASH SHIELD REMOVAL/INSTALLATION .)
24	EXTRACTOR CHAMBER (See EXTRACTOR CHAMBER REMOVAL/INSTALLATION .)
25	ORNAMENT (See ORNAMENT INSTALLATION .)
26	REAR FINISHER (See REAR FINISHER REMOVAL .) (See REAR FINISHER INSTALLATION .)
27	LIFTGATE GARNISH (See LIFTGATE GARNISH REMOVAL/INSTALLATION .)
