Front Deflector Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws and fasteners.

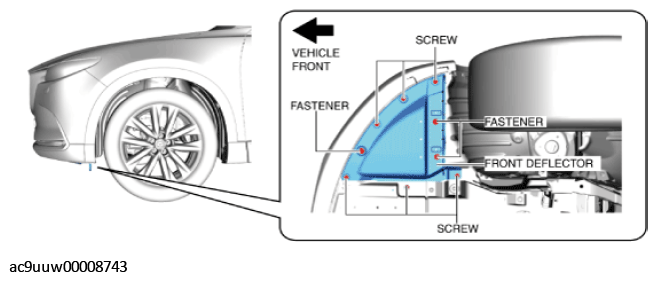

    Fig 1: Removing Front Deflector Screws And Fasteners
    G11431089Courtesy of MAZDA MOTORS CORP.
  2. Move the front deflector in the direction of the arrow shown in the figure and remove the front deflector from the front mudguard while detaching the hooks.

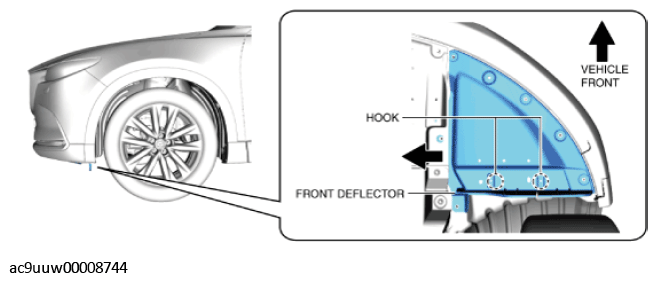

    Fig 2: Moving Front Deflector
    G11431090Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
