Seat Location Index

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

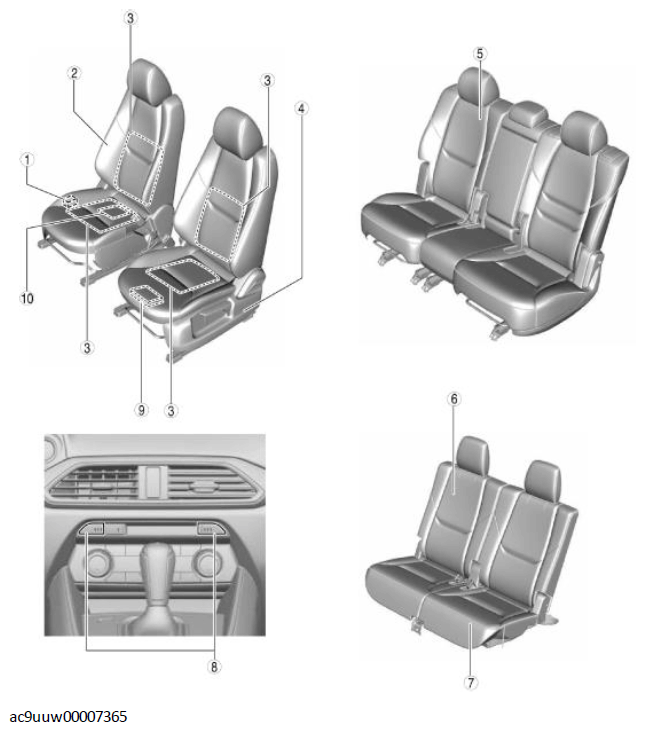

Fig 1: Seat Components Location

G11432527

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Front seat warmer control unit (See SEAT WARMER CONTROL UNIT REMOVAL/INSTALLATION .) (See SEAT WARMER CONTROL UNIT INSPECTION .) Front seat
2	Front seat (See FRONT SEAT REMOVAL/INSTALLATION .) (See FRONT SEAT BACK FRAME REMOVAL/INSTALLATION .) (See FRONT SEAT BACK TRIM REMOVAL/INSTALLATION .) (See FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION .) (See LIFT MOTOR INSPECTION .) (See SLIDE MOTOR INSPECTION .) (See RECLINER MOTOR INSPECTION .) (See LUMBAR SUPPORT UNIT REMOVAL/INSTALLATION .) (See LUMBAR SUPPORT MOTOR INSPECTION .)
3	Front seat warmer unit (See SEAT WARMER UNIT INSPECTION .)
4	Front seat side cover (See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION .) (See POWER SEAT SWITCH REMOVAL/INSTALLATION .) (See POWER SEAT SWITCH INSPECTION .) (See POSITION MEMORY SWITCH REMOVAL/INSTALLATION .) (See POSITION MEMORY SWITCH INSPECTION .)
5	Second-row seat (See SECOND-ROW SEAT REMOVAL/INSTALLATION .) (See SECOND-ROW SEAT SIDE COVER REMOVAL/INSTALLATION .) (See SECOND-ROW SEAT CUSHION REMOVAL/INSTALLATION .) (See SECOND-ROW SEAT CUSHION TRIM REMOVAL/INSTALLATION .) (See SECOND-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION .) (See SECOND-ROW SEAT BACK FRAME DISASSEMBLY/ASSEMBLY .) (See SECOND-ROW SEAT BACK TRIM REMOVAL/INSTALLATION .) (See CHILD-RESTRAINT SEAT ANCHOR REMOVAL/INSTALLATION .)
6	Third-row seat back (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION .) (See THIRD-ROW SEAT BACK TRIM REMOVAL/INSTALLATION .) (See THIRD-ROW SEAT BACK FRAME DISASSEMBLY/ASSEMBLY .) (See CHILD-RESTRAINT SEAT ANCHOR REMOVAL/INSTALLATION .)
7	Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION .) (See THIRD-ROW SEAT CUSHION TRIM REMOVAL/INSTALLATION .)
8	Seat warmer switch (See SEAT WARMER SWITCH REMOVAL/INSTALLATION .)
9	Position memory control module (See POSITION MEMORY CONTROL MODULE REMOVAL/INSTALLATION .) (See POSITION MEMORY CONTROL MODULE INSPECTION .)
10	Occupancy sensor (See OCCUPANCY SENSOR INSPECTION .)
