Second-Row Seat Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Detach hook A and B, remove the covers.

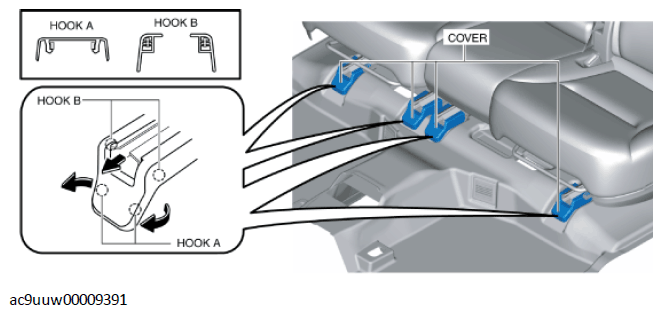

Fig 1: Detaching Second-Row Seat Hook A And B
Courtesy of MAZDA MOTORS CORP.
Remove the bolts.

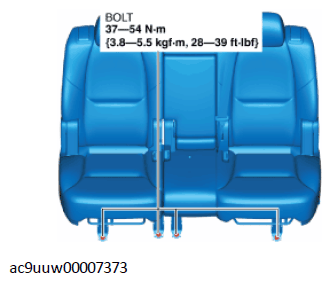

Fig 2: Second-Row Seat Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Move the cover in the direction of arrows (1) and (2), detach the hooks and remove the cover.

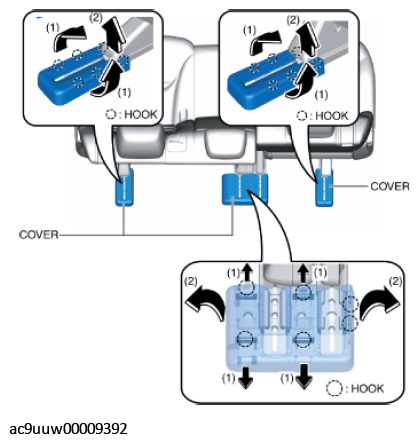

Fig 3: Moving Bolt Cover
Courtesy of MAZDA MOTORS CORP.
Remove the bolts.

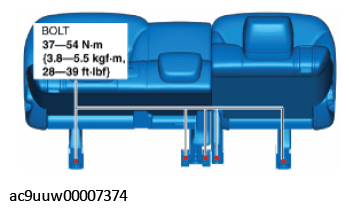

Fig 4: Second-Row Seat Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Disconnect the connector.

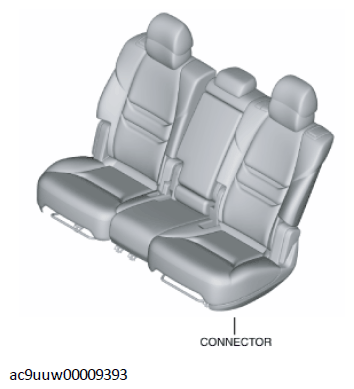

Fig 5: Second-Row Seat Connector
Courtesy of MAZDA MOTORS CORP.
Take the second-row seat out.
Install in the reverse order of removal.
