Third-Row Seat Back Component Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following parts:
    1. Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION .)
    2. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    3. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    4. Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION
  2. Move the tabs in the direction of the arrows shown in the figure, and remove the cover.

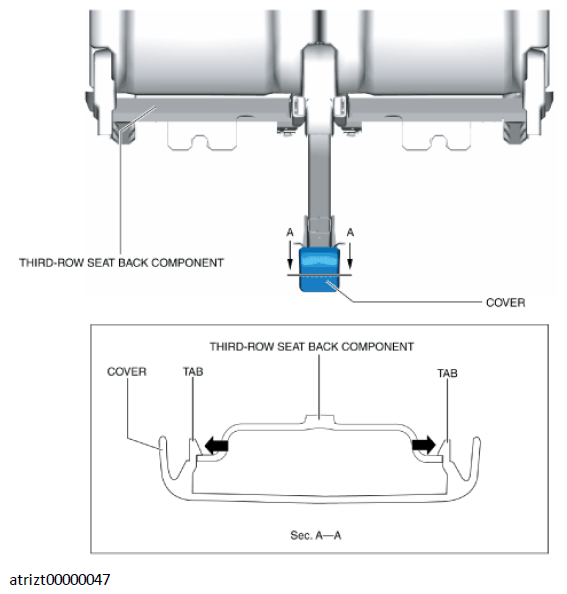

    Fig 1: Removing Third-Row Seat Back Component Cover
    G11432601Courtesy of MAZDA MOTORS CORP.
  3. Remove the bolts.

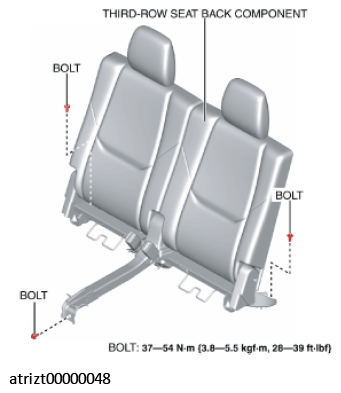

    Fig 2: Third-Row Seat Back Component And Bolts With Torque Specifications
    G11432602Courtesy of MAZDA MOTORS CORP.
  4. Remove the third-row seat back component.
  5. Install in the reverse order of removal.
