With Center Display

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

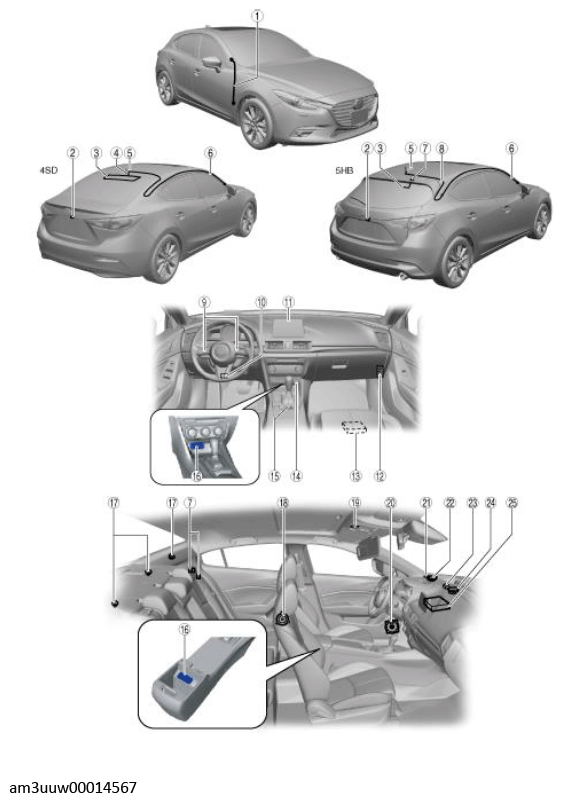

Fig 1: Entertainment Component Location - With Center Display

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Antenna feeder No. 1 (See ANTENNA FEEDER NO. 1 REMOVAL/INSTALLATION .) (See ANTENNA FEEDER NO. 1 INSPECTION .)
2	Rear mount camera (See REAR MOUNT CAMERA REMOVAL/INSTALLATION .) (See REAR MOUNT CAMERA INSPECTION .)
3	Glass antenna (See GLASS ANTENNA INSPECTION .)
4	Antenna amplifier (See ANTENNA AMPLIFIER REMOVAL/INSTALLATION .) (See ANTENNA AMPLIFIER INSPECTION .)
5	Center roof antenna (See CENTER ROOF ANTENNA REMOVAL/INSTALLATION .) (See CENTER ROOF ANTENNA INSPECTION .)
6	Antenna feeder No. 2 (See ANTENNA FEEDER NO. 2 REMOVAL .) (See ANTENNA FEEDER NO. 2 INSTALLATION .) (See ANTENNA FEEDER NO. 2 INSPECTION .)
7	Condenser (See CONDENSER REMOVAL/INSTALLATION .)
8	Antenna feeder No. 3 (See ANTENNA FEEDER NO. 3 REMOVAL/INSTALLATION .) (See ANTENNA FEEDER NO. 3 INSPECTION .)
9	Steering switch (See STEERING SWITCH REMOVAL/INSTALLATION .) (See STEERING SWITCH INSPECTION .)
10	Audio Pilot °2 microphone (with Bose °) (See AUDIOPILOT® 2 MICROPHONE REMOVAL/INSTALLATION .)
11	Center display (See CENTER DISPLAY REMOVAL/INSTALLATION .) (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE .)
12	Tuner and amp unit (TAU) (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION .)
13	Audio amplifier (With Bose °) (See AUDIO AMPLIFIER REMOVAL/INSTALLATION .)
14	CD player (with CD player) (See CD PLAYER REMOVAL .) (See CD PLAYER INSTALLATION .)
15	Commander switch (See COMMANDER SWITCH REMOVAL/INSTALLATION .)
16	Auxiliary jack/USB port/SD card slot hub (See AUXILIARY JACK/USB PORT/SD CARD SLOT HUB REMOVAL/INSTALLATION .) (See AUXILIARY JACK/USB PORT/SD CARD SLOT HUB INSPECTION .)
17	Rear speaker (with Bose °) (See REAR SPEAKER REMOVAL/INSTALLATION .) (See REAR SPEAKER INSPECTION .)
18	Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION .) (See REAR DOOR SPEAKER INSPECTION .)
19	Microphone (See MICROPHONE REMOVAL/INSTALLATION .)
20	Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .) (See FRONT DOOR SPEAKER INSPECTION .)
21	Tweeter (without Bose °) (See TWEETER REMOVAL/INSTALLATION .) (See TWEETER INSPECTION .)
22	Front side speaker (with Bose °) (See FRONT SIDE SPEAKER REMOVAL/INSTALLATION .) (See FRONT SIDE SPEAKER INSPECTION .)
23	GPS antenna (with car-navigation system) (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION .) (See GPS ANTENNA FEEDER REMOVAL/INSTALLATION .) (See GPS ANTENNA FEEDER INSPECTION .)
24	Front center speaker (with Bose °) (See FRONT CENTER SPEAKER REMOVAL/INSTALLATION .) (See FRONT CENTER SPEAKER INSPECTION .)
25	Connectivity master unit (CMU) (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION .) (See CONNECTIVITY MASTER UNIT (CMU) DISASSEMBLY/ASSEMBLY .) (See Bluetooth® PAIRING PROCEDURE .) (See MAINTENANCE MONITOR OPERATION PROCEDURE .)
