Audio Amplifier Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Slide the seat rearward (RH).
Remove the bolt.

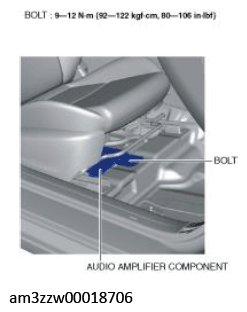

Fig 1: Locating Bolt On Audio Amplifier Component
Courtesy of MAZDA MOTORS CORP.
Slide the seat forward (RH).
Remove the bolt.

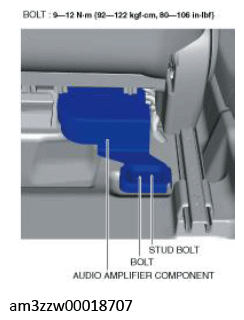

Fig 2: Locating Bolt On Audio Amplifier Component
Courtesy of MAZDA MOTORS CORP.
Raise the audio amplifier component and remove the stud bolt from the body.
Disconnect the connectors.

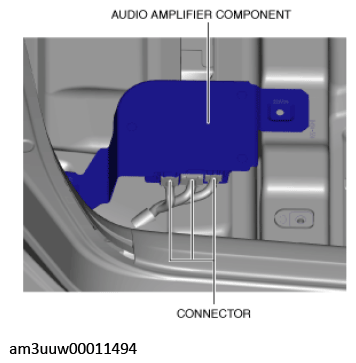

Fig 3: Locating Connectors On Audio Amplifier Component
Courtesy of MAZDA MOTORS CORP.
Remove the nuts.

Fig 4: Remove Nuts From Audio Amplifier
Courtesy of MAZDA MOTORS CORP.
Remove the audio amplifier.
Install in the reverse order of removal.
