Cd Player Removal

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Shift the selector lever from the P position to the D position (ATX).
  3. Insert the SSTs (removing tool) into the positions shown in the figure and disengage the CD player from the front console.

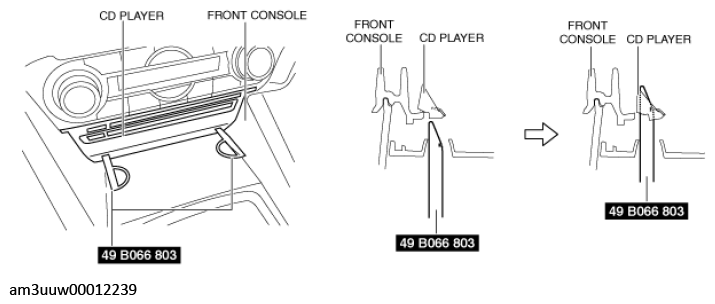

    Fig 1: Disengaging CD Player From Front Console
    G11448755Courtesy of MAZDA MOTORS CORP.
  4. Pull the SSTs (removing tool) in the direction shown in the figure and remove the CD player from the front console.

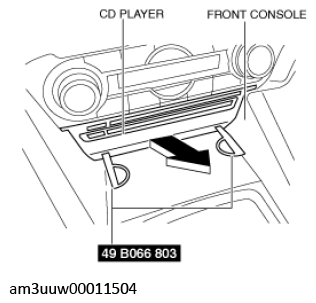

    Fig 2: Removing CD Player From Front Console
    G11448756Courtesy of MAZDA MOTORS CORP.
  5. Disconnect the connector.

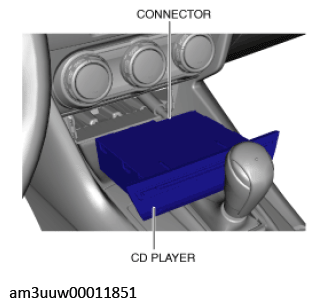

    Fig 3: Locating CD Player Connector
    G11448757Courtesy of MAZDA MOTORS CORP.
  6. Remove the CD player.
  7. While pulling the SSTs (removing tool) in the direction of the arrow (2) shown in the figure, press the CD player spring in the direction of the arrow (1) shown in the figure.

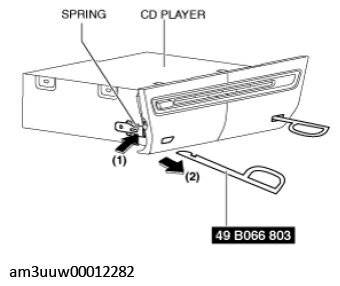

Fig 4: Pressing CD Player Spring
G11433999Courtesy of MAZDA MOTORS CORP.
