With Center Display

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

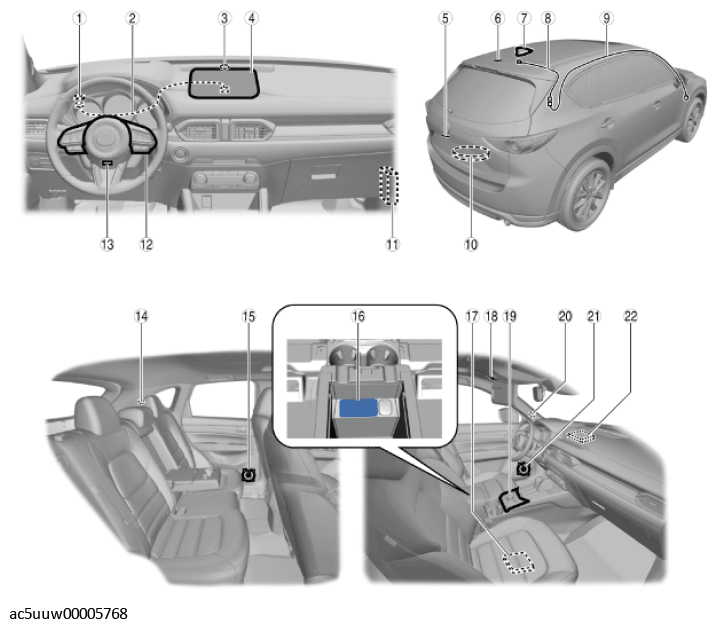

Fig 1: Locating Entertainment Index With Center Display

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	GPS antenna (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION .)
2	GPS antenna feeder (See GPS ANTENNA FEEDER REMOVAL/INSTALLATION .) (See GPS ANTENNA FEEDER INSPECTION .)
3	Front center speaker (With Bose °) (See FRONT CENTER SPEAKER REMOVAL/INSTALLATION .) (See FRONT CENTER SPEAKER INSPECTION .)
4	Center display (See CENTER DISPLAY REMOVAL/INSTALLATION .) (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE .)
5	Rear mount camera (See REAR MOUNT CAMERA REMOVAL/INSTALLATION .) (See REAR MOUNT CAMERA INSPECTION .)
6	Condenser (See CONDENSER REMOVAL/INSTALLATION .)
7	Center roof antenna (See CENTER ROOF ANTENNA REMOVAL/INSTALLATION .) (See CENTER ROOF ANTENNA INSPECTION .)
8	Antenna feeder No. 3 (See ANTENNA FEEDER NO. 3 REMOVAL/INSTALLATION .) (See ANTENNA FEEDER NO. 3 INSPECTION .)
9	Antenna feeder No. 2 (See ANTENNA FEEDER NO. 2 REMOVAL/INSTALLATION .) (See ANTENNA FEEDER NO. 2 INSPECTION .)
10	Bass-box (with Bose °) (See BASS-BOX REMOVAL/INSTALLATION .) (See BASS-BOX INSPECTION .)
11	Tuner and amp unit (TAU) (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION .) (See TUNER AND AMP UNIT (TAU) BRACKET REMOVAL/INSTALLATION .)
12	Steering switch (See STEERING SWITCH REMOVAL/INSTALLATION .) (See STEERING SWITCH INSPECTION .)
13	AudioPilot ° microphone (with Bose °) (See AUDIOPILOT® MICROPHONE REMOVAL/INSTALLATION .)
14	Rear speaker (with Bose °) (See REAR SPEAKER REMOVAL/INSTALLATION .) (See REAR SPEAKER INSPECTION .)
15	Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION .) (See REAR DOOR SPEAKER INSPECTION .)
16	Auxiliary jack/USB port/SD card slot hub (See AUXILIARY JACK/USB PORT/SD CARD SLOT HUB REMOVAL/INSTALLATION .) (See AUXILIARY JACK/USB PORT/SD CARD SLOT HUB INSPECTION .)
17	Audio amplifier (With Bose °) (See AUDIO AMPLIFIER REMOVAL/INSTALLATION .)
