Rear Mount Camera Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    2. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    3. Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
    4. Power liftgate (PLG) rear switch (with power liftgate (PLG) (See POWER LIFTGATE (PLG) REAR SWITCH REMOVAL/INSTALLATION .)
    5. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
    6. Liftgate garnish (See LIFTGATE GARNISH REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

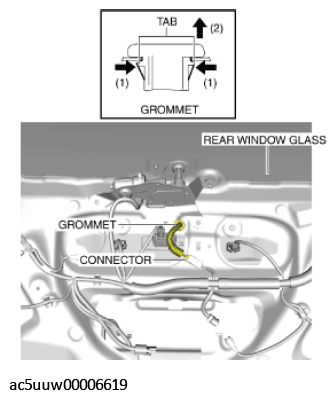

  4. While pressing the grommet tabs in the direction of arrows (1) shown in the figure, pull the grommet in the direction of arrow (2) shown in the figure, and disengage the tabs from the liftgate.
    Fig 1: Pressing Rear Mount Camera Grommet Tabs
    G11426098Courtesy of MAZDA MOTORS CORP.

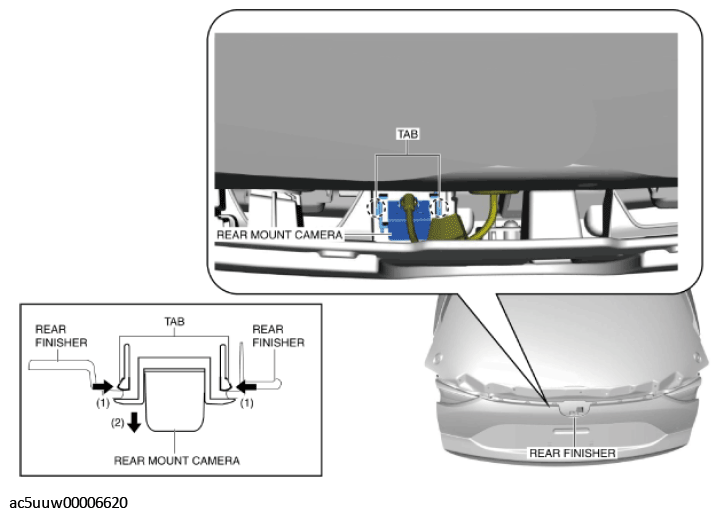

  5. While pressing the rear mount camera tabs in the direction of arrows (1) shown in the figure, pull the rear mount camera in the direction of arrow (2) shown in the figure, and disengage the tabs from the rear finisher.
    Fig 2: Pressing Rear Mount Camera Tabs
    G11426099Courtesy of MAZDA MOTORS CORP.
  6. Remove the rear mount camera.
  7. Install in the reverse order of removal.
