Liftgate Upper Trim Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

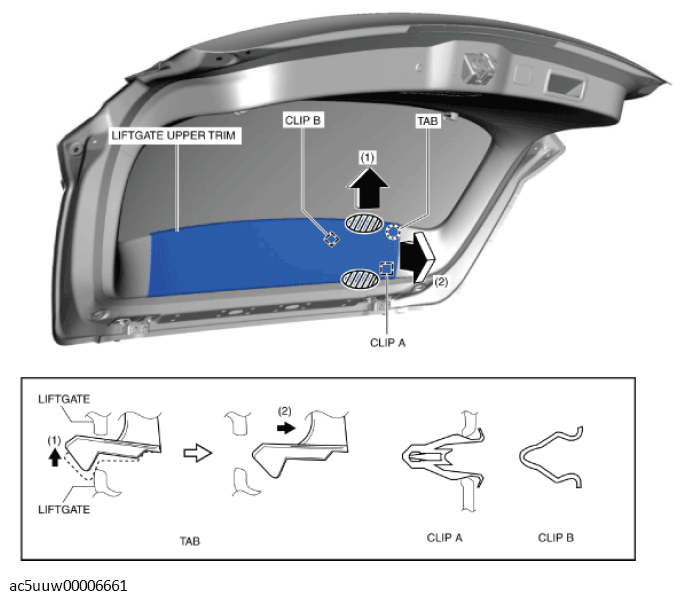

Hold the shaded areas shown in the figure and partially peel back the edge of the liftgate upper trim in the direction of arrow (1) to detach the tab, move the liftgate upper trim in the direction of arrow (2) with the tab detached, and detach clip A and B.

Fig 1: Peeling Edge Of Liftgate Upper Trim
Courtesy of MAZDA MOTORS CORP.

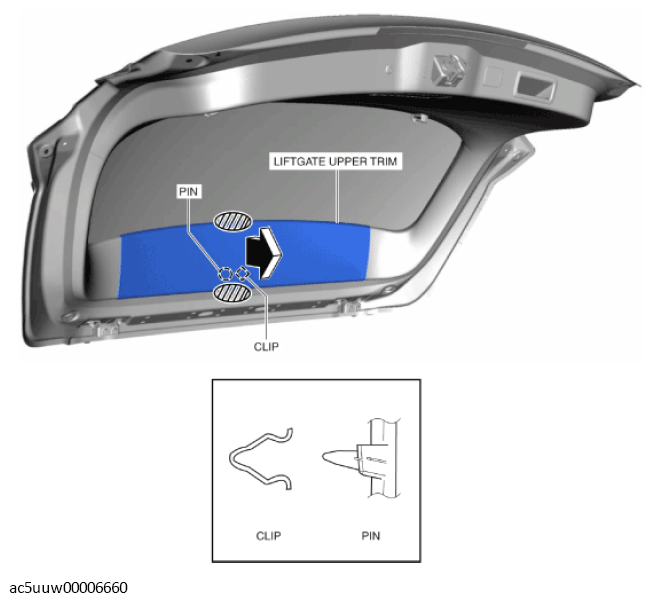

Hold the shaded areas shown in the figure, move the liftgate upper trim in the direction of the arrow and detach the clip and pin.

Fig 2: Moving Liftgate Upper Trim
Courtesy of MAZDA MOTORS CORP.

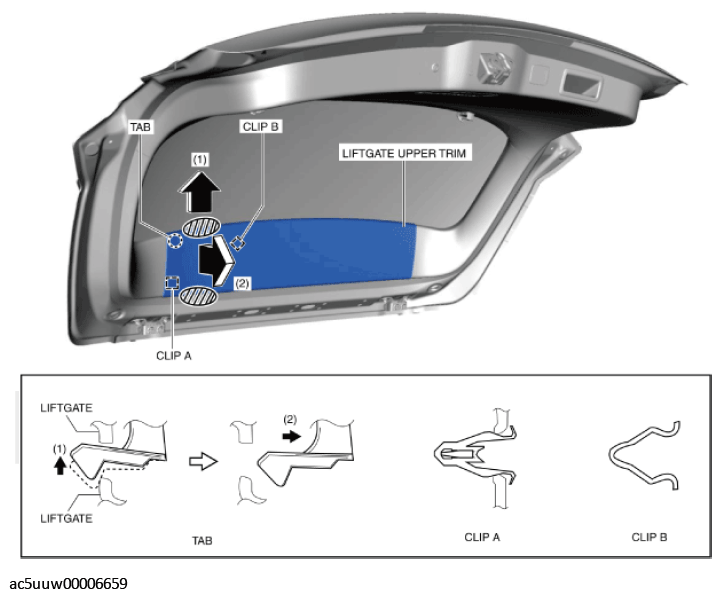

Hold the shaded areas shown in the figure and partially peel back the edge of the liftgate upper trim in the direction of arrow (1) to detach the tab, move the liftgate upper trim in the direction of arrow (2) with the tab detached, and detach clip A and B.

Fig 3: Peeling Edge Of Liftgate Upper Trim
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
