Audio Amplifier Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Slide the passenger-side front seat rearward.
Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Move the audio amplifier cover in the direction of the arrow shown in the figure, and remove it while detaching clips A and B.

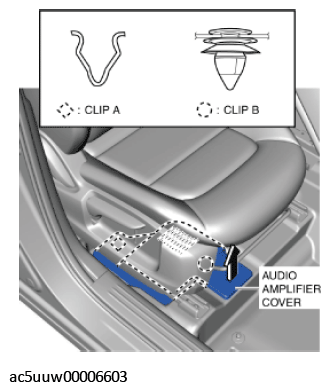

Fig 1: Locating Audio Amplifier Detaching Clips
Courtesy of MAZDA MOTORS CORP.
Remove the bolts.

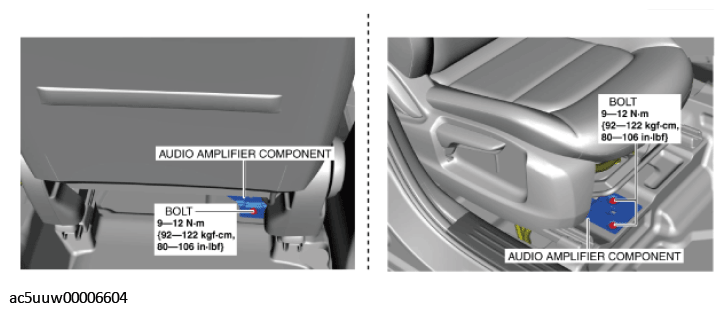

Fig 2: Removing Audio Amplifier Bolts
Courtesy of MAZDA MOTORS CORP.
Disconnect the connectors.

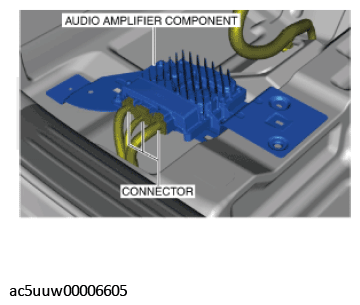

Fig 3: Locating Audio Amplifier Connector
Courtesy of MAZDA MOTORS CORP.
Remove the audio amplifier component.
Remove the nuts.

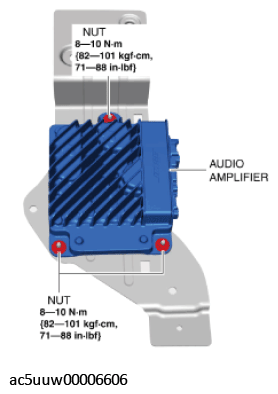

Fig 4: Locating Audio Amplifier Nut With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the audio amplifier.
Install in the reverse order of removal.
