Liftgate Latch And Lock Actuator Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    2. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    3. Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
    4. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)

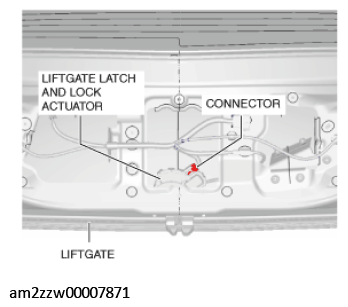

  3. Disconnect the connector.
    G11472711Courtesy of MAZDA MOTORS CORP.

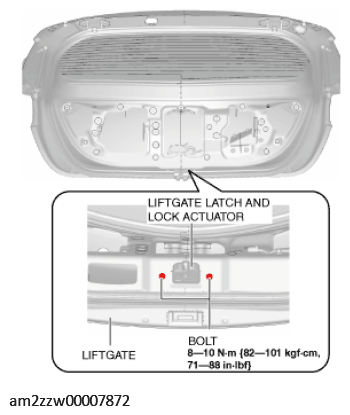

  4. Remove the bolts.
    Fig 1: Liftgate, Liftgate Latch, Lock Actuator And Bolts With Torque Specification
    G11472712Courtesy of MAZDA MOTORS CORP.

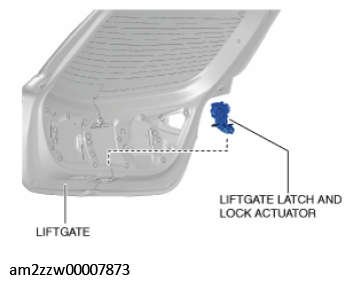

  5. Remove the liftgate latch and lock actuator from the liftgate.
    G11472713Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
