Liftgate Recess Removal/Installation

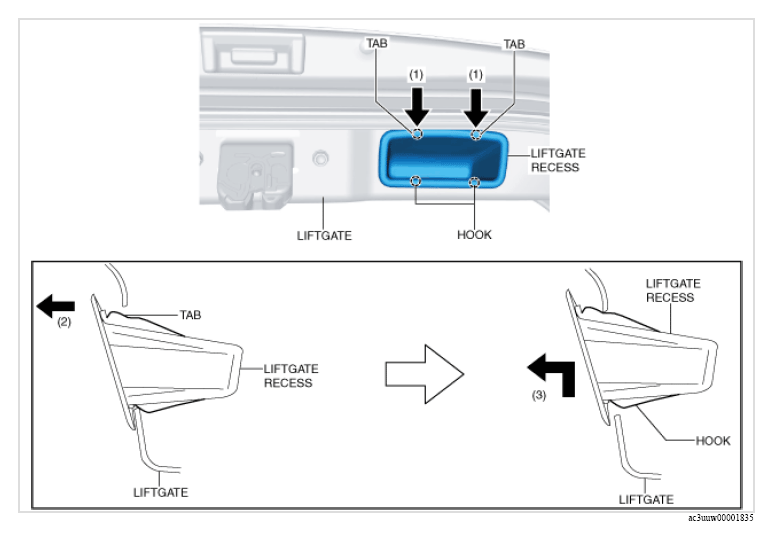

  1. While pressing the liftgate recess in the direction of arrows (1) shown in the figure, move the liftgate recess in the direction of arrow (2), and detach the liftgate recess tabs from the liftgate.
    G13152839Courtesy of MAZDA MOTORS CORP.
  2. Remove the liftgate recess in the direction of arrow (3) shown in the figure avoiding the hooks.
  3. Install in the reverse order of removal.
