Rear Drive Shaft Disassembly/Assembly: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Do not allow a magnetized tool such as a magnetized screwdriver to come into contact with the ABS sensor rotor. If the ABS sensor rotor becomes magnetized it will be unable to read the ABS wheel-speed sensor waveform correctly resulting in an ABS system malfunction to be determined and the inability to perform ABS control. If a magnetized object comes into contact with the ABS sensor rotor, it will be necessary to newly replace the rear drive shaft (ABS sensor rotor).

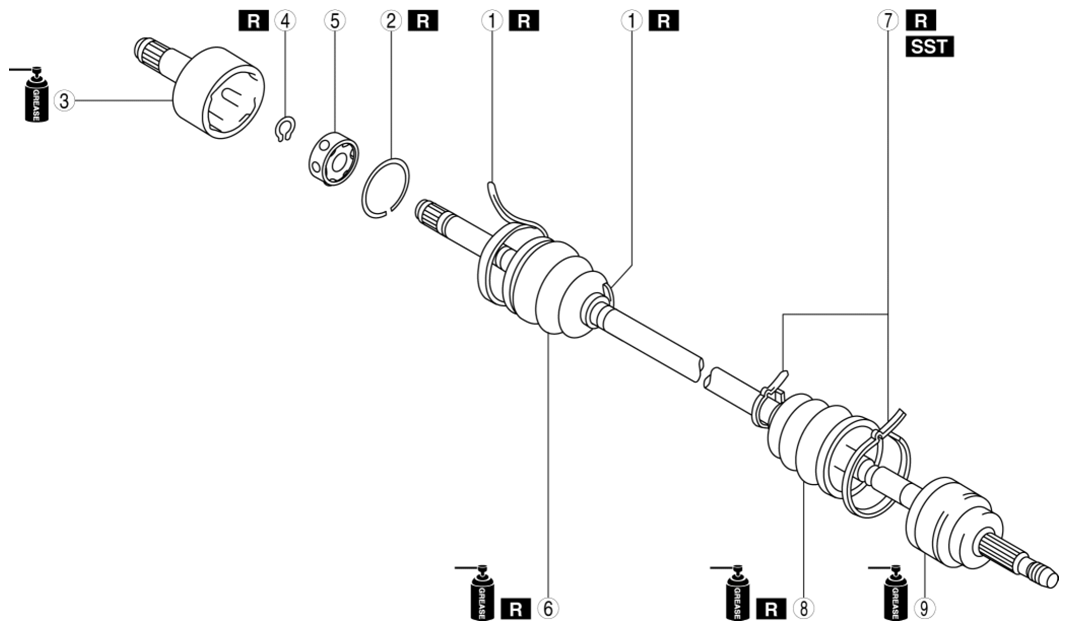

- Disassemble in the order shown in the figure.
- Assemble in the reverse order of removal.
COMPONENT DESCRIPTION
| 1 | Boot band (differential side) (See Boot Band Disassembly Note .) (See Boot Band Assembly Note .) |
| 2 | Clip (See Clip, Outer Ring Disassembly Note .) (See Outer Ring, Clip Assembly Note .) |
| 3 | Outer ring (See Clip, Outer Ring Disassembly Note .) (See Outer Ring, Clip Assembly Note .) |
| 4 | Snap ring (See Snap ring, Ball, Inner Ring, Cage Disassembly Note .) (See Ball, Inner Ring, Cage, Snap Ring Assembly Note .) |
| 5 | Ball, inner ring, cage (See Snap ring, Ball, Inner Ring, Cage Disassembly Note .) (See Ball, Inner Ring, Cage, Snap Ring Assembly Note .) |
| 6 | Boot (differential side) (See Boot (Differential Side) Disassembly Note .) (See Boot (Differential Side) Assembly Note .) |
| 7 | Boot band (wheel side) (See Boot Band Disassembly Note .) (See Boot Band Assembly Note .) |
| 8 | Boot (wheel side) (See Boot (Wheel Side) Disassembly Note .) (See Boot (Wheel Side) Assembly Note .) |
| 9 | Shaft and ball joint component |
