Boot Band Disassembly Note

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Using a screwdriver and hammer, lightly tap the lever of the boot band to disconnect the lock clip.

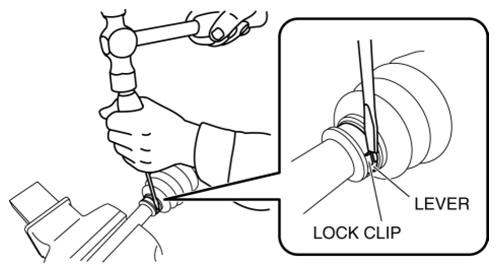

Fig 1: Tapping Boot Band Lever Using Hammer
Courtesy of MAZDA MOTORS CORP.
Remove the boot band using pliers.

Fig 2: Removing Boot Band Using Pliers

Courtesy of MAZDA MOTORS CORP.
