GPS Antenna Feeder Inspection
WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the following parts:
- Upper column cover (Refer to COLUMN COVER REMOVAL/INSTALLATION .)
- Meter hood (Refer to METER HOOD REMOVAL/INSTALLATION .)
- Instrument cluster (with active driving display) (Refer to INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
- GPS antenna (Refer to GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION .)
- Audio panel No. 2 (Refer to AUDIO PANEL No. 2 REMOVAL/INSTALLATION .)
- Audio panel No. 1 (Refer to AUDIO PANEL No. 1 REMOVAL/INSTALLATION .)
- Center display (Refer to CENTER DISPLAY REMOVAL/INSTALLATION .)
- GPS antenna feeder (Refer to GPS ANTENNA FEEDER REMOVAL/INSTALLATION .)

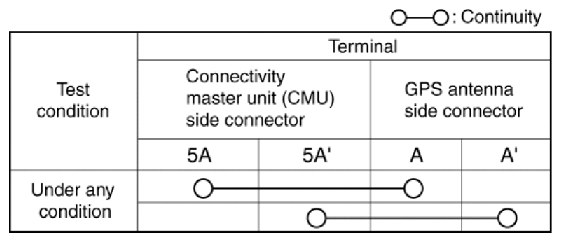

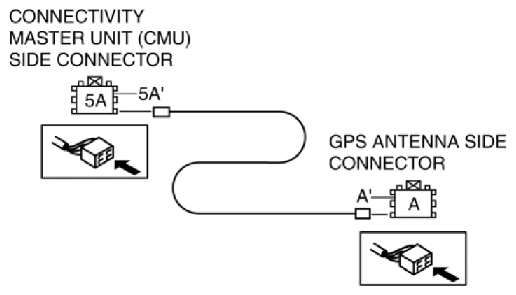

- Verify that the continuity is as indicated in the table.
- If not as indicated in the table, replace GPS antenna feeder. (Refer to GPS ANTENNA FEEDER REMOVAL/INSTALLATION .)
