GPS Antenna Feeder Removal/Installation
WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the following parts:
- Upper column cover (Refer to COLUMN COVER REMOVAL/INSTALLATION .)
- Meter hood (Refer to METER HOOD REMOVAL/INSTALLATION .)
- Instrument cluster (with active driving display) (Refer to INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
- GPS antenna (Refer to GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION .)
- Audio panel No. 2. (Refer to AUDIO PANEL No. 2 REMOVAL/INSTALLATION .)
- Audio panel No. 1. (Refer to AUDIO PANEL No. 1 REMOVAL/INSTALLATION .)
- Center display component (Refer to CENTER DISPLAY REMOVAL/INSTALLATION .)

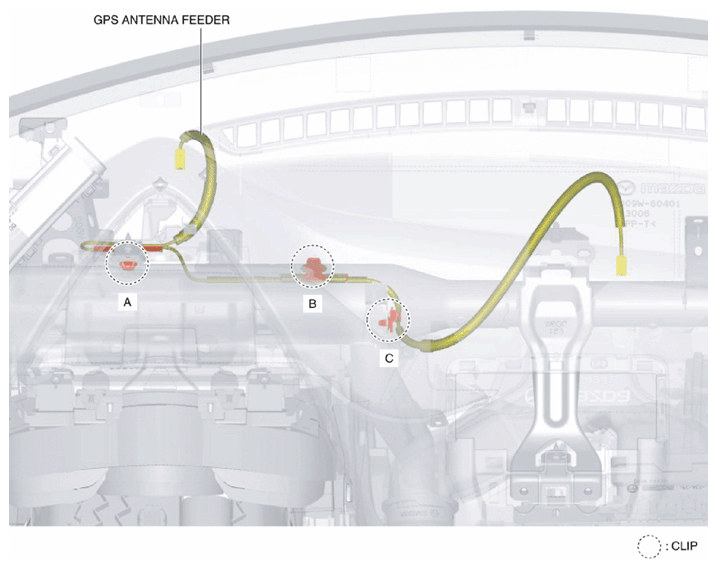

- Remove clips A, B, and C in the position shown in the figure.
- Remove the GPS antenna feeder.
- Install in the reverse order of removal.
