Meter Hood Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the upper column cover. (Refer to COLUMN COVER REMOVAL/INSTALLATION .)
Hold the shaded area shown in the figure, pull the meter hood in the direction of the arrow and detach clips A and B from the dashboard.

Fig 1: Pulling Meter Hood
Courtesy of ABLE BODY CORP.
Hold the shaded area shown in the figure, pull the meter hood in the direction of the arrow and detach the clips from the dashboard.

Fig 2: Detaching Clips From Dashboard
Courtesy of ABLE BODY CORP.
Hold the shaded area shown in the figure, pull the meter hood in the direction of the arrow and detach clips A and B from the dashboard.

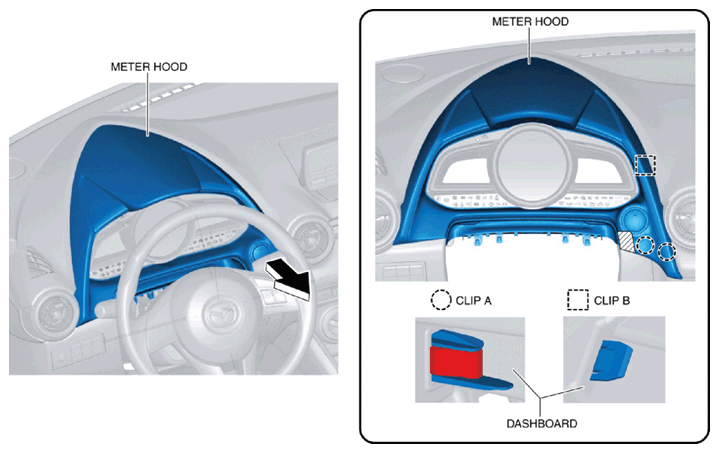

Fig 3: Pulling Meter Hood
Courtesy of ABLE BODY CORP.
Disconnect the push button start connector.

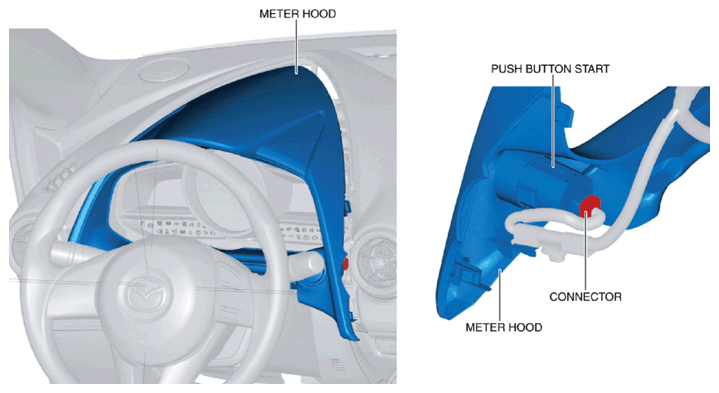

Fig 4: Identifying Meter Hood, Push Button Start And Connector
Courtesy of ABLE BODY CORP.
Remove the meter hood.
Remove the push button start. (Refer to PUSH BUTTON START REMOVAL/INSTALLATION .)
Install in the reverse order of removal.
