Brake Light Unit Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
    2. Trunk board (with trunk board) (See TRUNK BOARD REMOVAL/INSTALLATION .)
    3. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    4. Bass-box (with Bose®) (See BASS-BOX REMOVAL/INSTALLATION .)
    5. Trunk box (See TRUNK BOX REMOVAL/INSTALLATION .)
    6. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
  3. Partially peel back the trunk side trim (LH). (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)

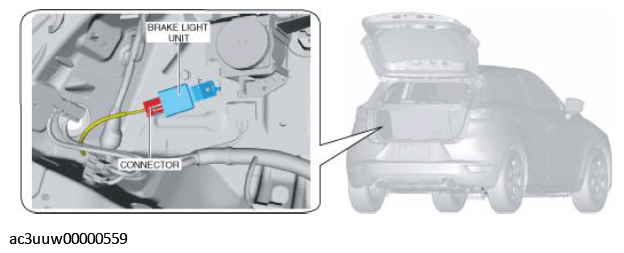

  4. Disconnect the connector.
    G11449647Courtesy of MAZDA MOTORS CORP.
  5. Remove the nut.
    Fig 1: Brake Light Unit And Nut With Torque Specification
    G11449648Courtesy of MAZDA MOTORS CORP.
  6. Pull the brake light unit from the stud bolt and remove it.
    G11449649Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
