Hood Removal/Installation: Installation

Install the bolts shown in the figure and install the hood hinge.

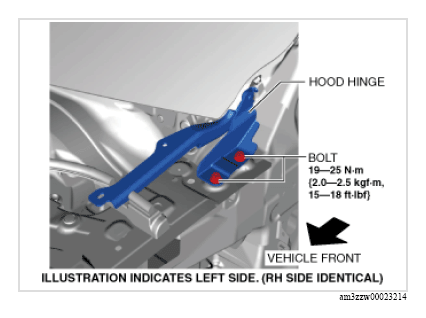

Fig 1: Hood Hinge Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install the following parts:
1. Front fender panel (See FRONT FENDER PANEL REMOVAL/INSTALLATION .)
2. Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
3. Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION [(US)] .)
4. Upper face (See UPPER FACE REMOVAL/INSTALLATION [(US)] .)

Install the bolts shown in the figure and install the hood.

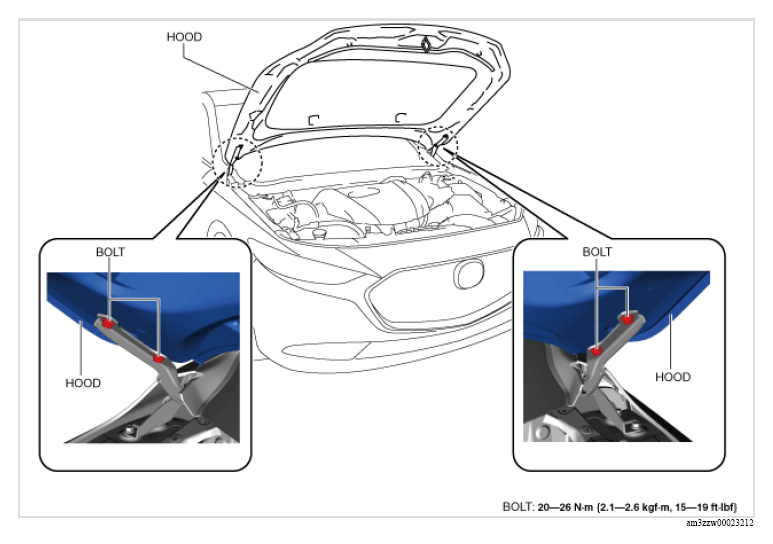

Fig 2: Hood Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Perform the hood adjustment. (See HOOD ADJUSTMENT .)
- When installing the hood hinge, perform the following procedure:
1. Install the following parts:
  1. Front fender molding (See FRONT FENDER MOLDING REMOVAL/INSTALLATION .)
  2. Side step molding (See SIDE STEP MOLDING INSTALLATION .)
  3. Rear deflector (See DEFLECTOR REMOVAL/INSTALLATION .)
  4. Front door (See FRONT DOOR REMOVAL/INSTALLATION .)
2. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
Adjust the headlight aiming. (See HEADLIGHT AIMING [(US)] .)
Perform the front door adjustment. (See DOOR ADJUSTMENT .)
Perform the 360° view monitor system aiming. (with 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING .)
Perform the front radar sensor aiming adjustment. (with front radar sensor) (See FRONT RADAR SENSOR AIMING .)
Perform the front side radar sensor aiming adjustment. (with front side radar sensor) (See FRONT SIDE/REAR SIDE RADAR SENSOR AIMING .)
