Power Metal Oxide Semiconductor Field Effect Transistor (Power MOSFET) Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
2. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
3. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
4. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
5. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
6. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
7. Selector lever component (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
8. Selector lever bracket (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
Disconnect the connector.

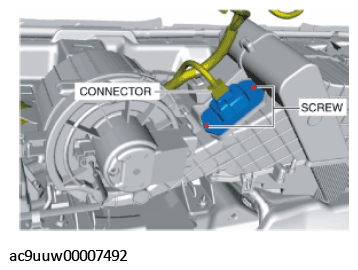

Fig 1: Power Metal Oxide Semiconductor Field Effect Transistor Screw And Connector
Courtesy of MAZDA MOTORS CORP.
Remove the screws.
Remove the power MOSFET.

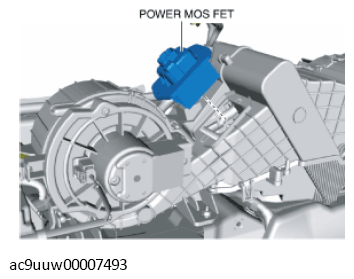

Fig 2: Power MOSFET
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
