Console Side Panel Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a remover tool into the position shown in the figure.

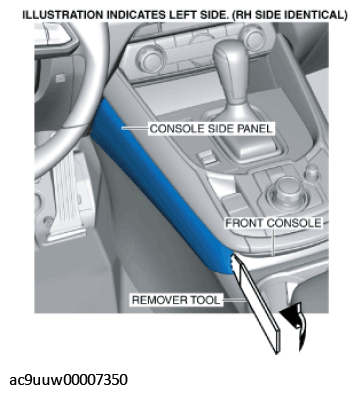

    Fig 1: Inserting Remover Tool Between Console Side Panel And Front Console
    G11434867Courtesy of MAZDA MOTORS CORP.
  2. Move the remover tool in the direction of the arrow shown in the figure to secure a space for inserting your fingers between the console side panel and the front console.
  3. Pull the console side panel in the direction of the arrows in the order of (1), (2) while detaching clips A, clips B.

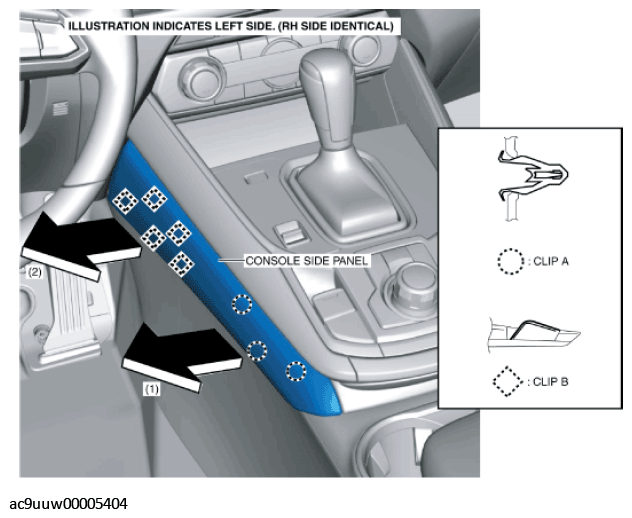

    Fig 2: Pulling Console Side Panel
    G11434868Courtesy of MAZDA MOTORS CORP.
  4. Remove the console side panel in the direction of arrow shown in the figure while detaching the guides.

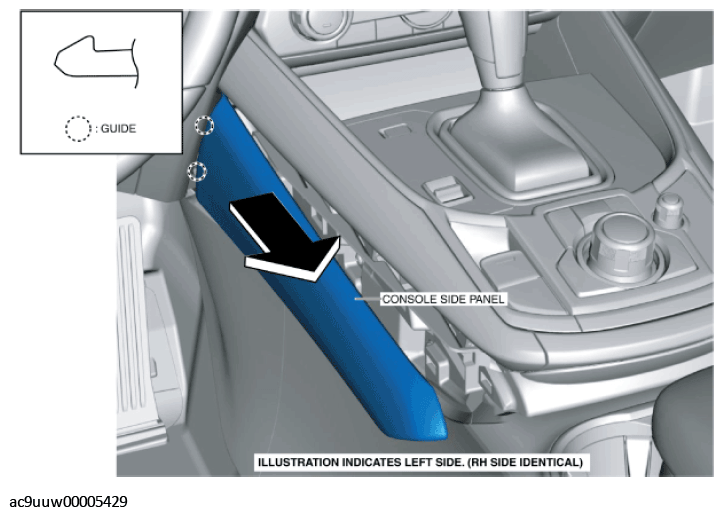

    Fig 3: Removing Console Side Panel
    G11434869Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
